B1B97

B1B97-PASSENGER SEAT TRACK POSITION SENSOR CONFIGURATION MISMATCH

For a complete wiring diagram Consult Diagrams/Electrical.

- When Monitored:
With the ignition on the ORC monitors the Seat Track Position Sensors circuits.

- Set Condition:
If the ORC detects current on the Seat Track Position Sensor circuits and the module is not configured for STPS.





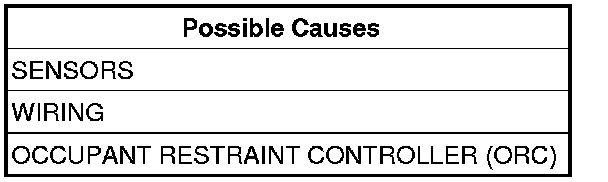

Diagnostic Test

1. IDENTIFYING VEHICLE EQUIPMENT
NOTE: Ensure the battery is fully charged.

Turn the ignition on.
With the scan tool, read ORC active DTCs.
Does the scan tool display active: B1B97-PASSENGER SEAT TRACK POSITION SENSOR CONFIGURATION MISMATCH?

Yes

- Go To 2

No

- Repair complete.

Diagnostic Test

2. CHECK FOR ACTIVE INTERNAL FAULTS, IGNITION FAULTS, AND BATTERY FAULTS IN THE OCCUPANT RESTRAINT CONTROLLER (ORC)
With the scan tool, read Occupant Restraint Controller (ORC) DTCs.
Does the scan tool display any active DTCs relating to internal faults, ignition faults, or battery faults?

Yes

- Diagnose and repair the DTCs.

No

- Go To 3

3. VERIFY THAT B1B97-PASSENGER SEAT TRACK POSITION SENSOR CONFIGURATION MISMATCH IS ACTIVE
With the scan tool, erase ORC DTCs.
Turn the ignition off, wait 10 seconds and then turn the ignition on.
Wait 2 minutes, and then with the scan tool, read ORC DTCs.
Does the scan tool display active: B1B97-PASSENGER SEAT TRACK POSITION SENSOR CONFIGURATION MISMATCH?

Yes

- Go To4

No

- Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1 Airbag System Verification Test.

4. VERIFY WIRING
Turn the ignition off.
Inspect the passenger seat wiring for Seat Position Sensors.
Are Seat Position Sensor(s) present?

Yes

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.

WARNING: If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to take the proper precautions can result in accidental airbag deployment and personal injury or death.

- Replace the ORC.
- Perform the *AIRBAG SYSTEM VERIFICATION TEST Airbag System Verification Test

No

- Perform *AIRBAG SYSTEM VERIFICATION TEST - VER 1 Airbag System Verification Test.
