Motor-Wiper-Rear

Component ID: 319

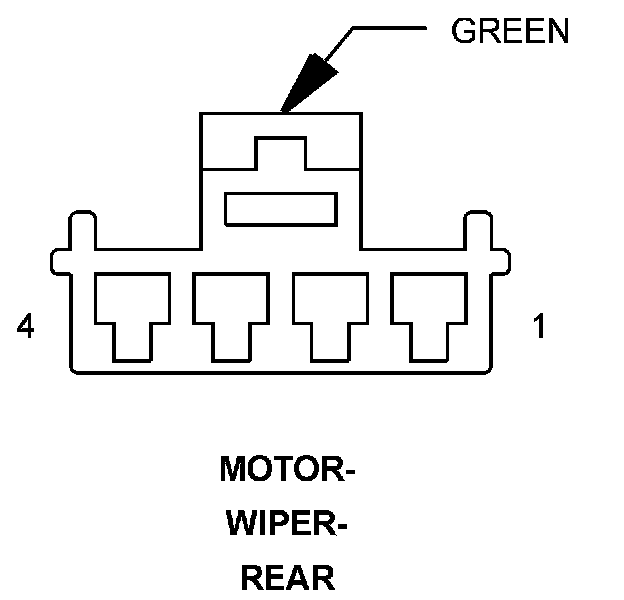

Component : MOTOR-WIPER-REAR

Connector:
Name : MOTOR-WIPER-REAR
Color : GREEN
# of pins : 4




Pin Circuit Description
1 - -
2 F996 20PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
3 Z960 16BK/LB GROUND
4 W13 20BR/LG REAR WIPER MOTOR CONTROL

Component Location - 64
