Motor-Wiper-Front

Component ID: 318
Component : MOTOR-WIPER-FRONT

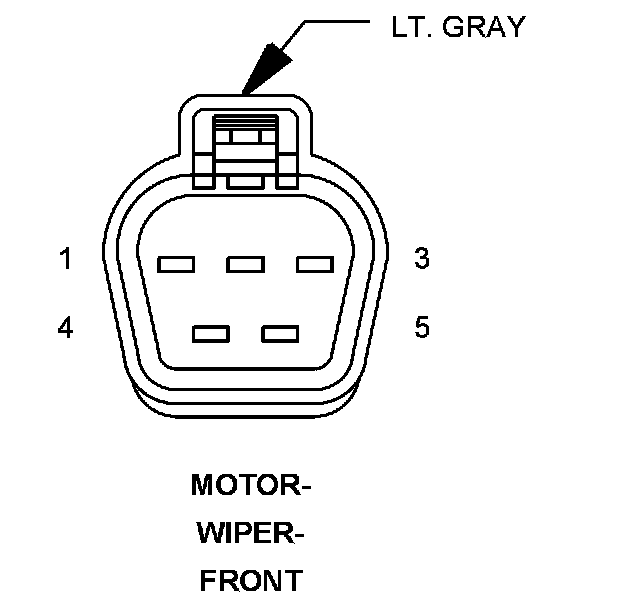

Connector:
Name : MOTOR-WIPER-FRONT
Color : LT. GRAY
# of pins : 5




Pin Circuit Description
1 W3 16BR/WT FRONT WIPER LOW SPEED CONTROL OUTPUT
Pin Circuit Description
1 W7 20BR/DB FRONT WIPER PARK SWITCH SENSE
2 - -
3 W7 20BR/DB FRONT WIPER PARK SWITCH SENSE
3 W4 14BR/LB FRONT WIPER HIGH SPEED CONTROL OUTPUT
4 W4 14BR/LB FRONT WIPER HIGH SPEED CONTROL OUTPUT
4 Z971 14BK GROUND
5 Z971 14BK GROUND
5 W3 16BR/WT FRONT WIPER LOW SPEED CONTROL OUTPUT

Component Location - 8
