Washer Reservoir - Installation

INSTALLATION

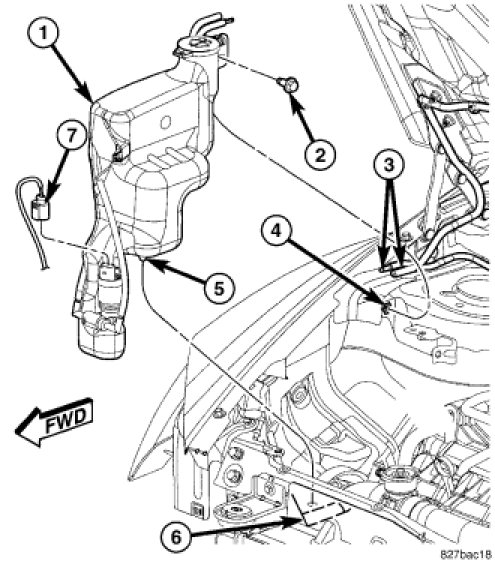

1. Position the washer reservoir (1) into the right front corner of the engine compartment.
2. Align and engage the post (5) on the underside of the reservoir into the hole in the horizontal extension of the right front wheel house (6).
3. Install and tighten the screw (2) that secures the mounting tab on the back of the reservoir filler neck to the bracket (4) on the forward side of the right front strut tower.

NOTE: Be certain to reconnect the front and rear washer hoses to the proper reservoir hoses from the washer pump. Failure to properly connect the hoses will cause the front and rear washer systems to operate incorrectly.

4. Reconnect the front and rear washer hoses (3) to the reservoir washer hoses near the top of the right front strut tower.
5. Reconnect the headlamp and dash wire harness connector (7) to the washer pump/motor unit.
6. Position the coolant reserve container (gasoline engine) or the coolant pressure container (diesel engine) to the inboard side of the washer reservoir and reinstall or engage each of the fasteners that secure the container. Refer to Cooling System for the appropriate procedures for the engine and coolant container type as the vehicle is equipped.
7. Refill the washer reservoir with the washer fluid drained during removal.
8. Reconnect the battery negative cable.
