Rear Door Glass Run Channel - Installation







INSTALLATION

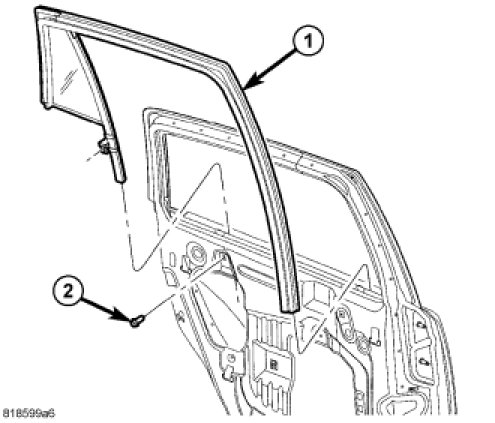

1. Lower glass run into glass run door channel.
2. Install fastener (2).
3. Install door module.Rear Door Module - Installation
