Installation







INSTALLATION

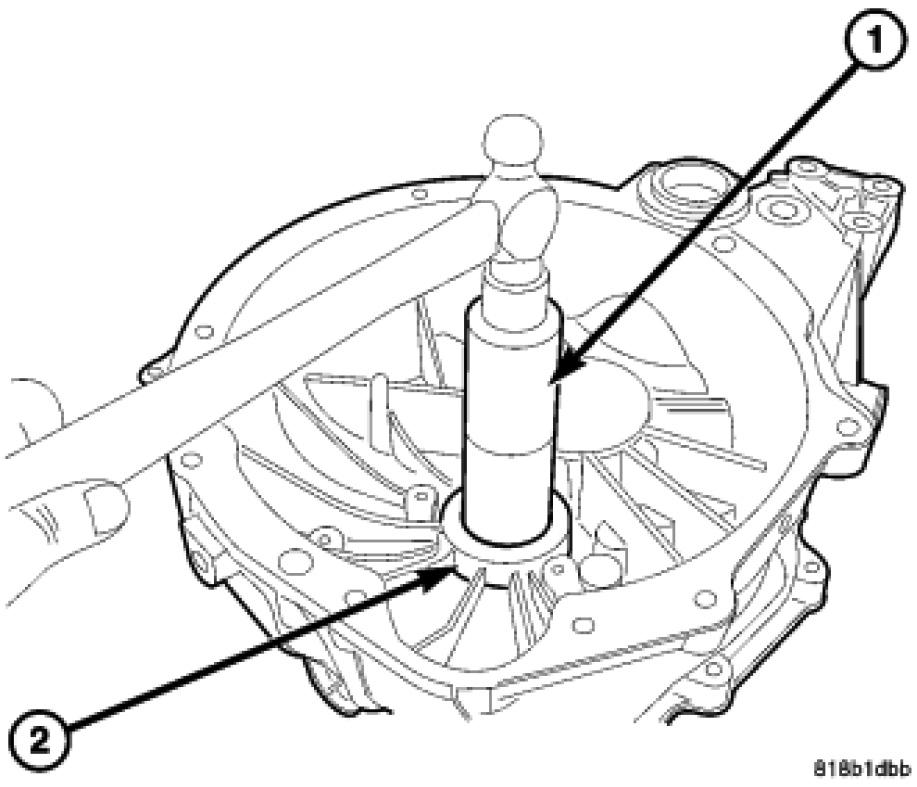

1. Install input shaft seal (2) using installer 8864 (1).
2. Install the transaxleManual Transmission/Transaxle - Installation.
