Removal

REMOVAL





1. Remove front fascia Front Fascia - Removal.
2. Recover refrigerant Refrigerant System Recovery.
3. Disconnect A/C lines.

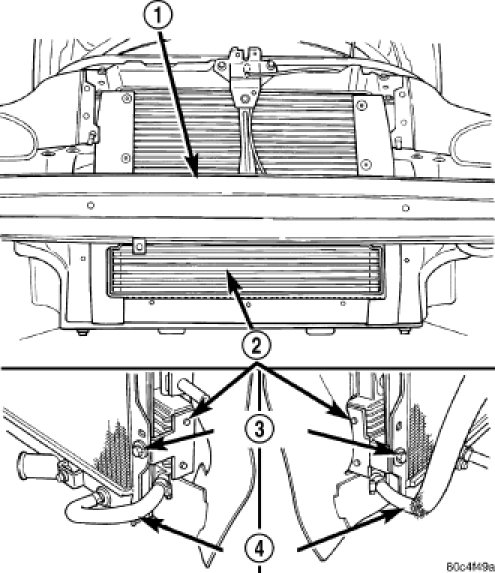

4. Using Tool 8875A disconnect cooler line from the combination cooler. Service and Repair
5. Remove combination cooler mounting bolts.
6. Remove combination cooler (2).
