Home >> Dodge >> 2008 >> Caliber L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Continuously Variable Transmission/Transaxle >> Testing and Inspection

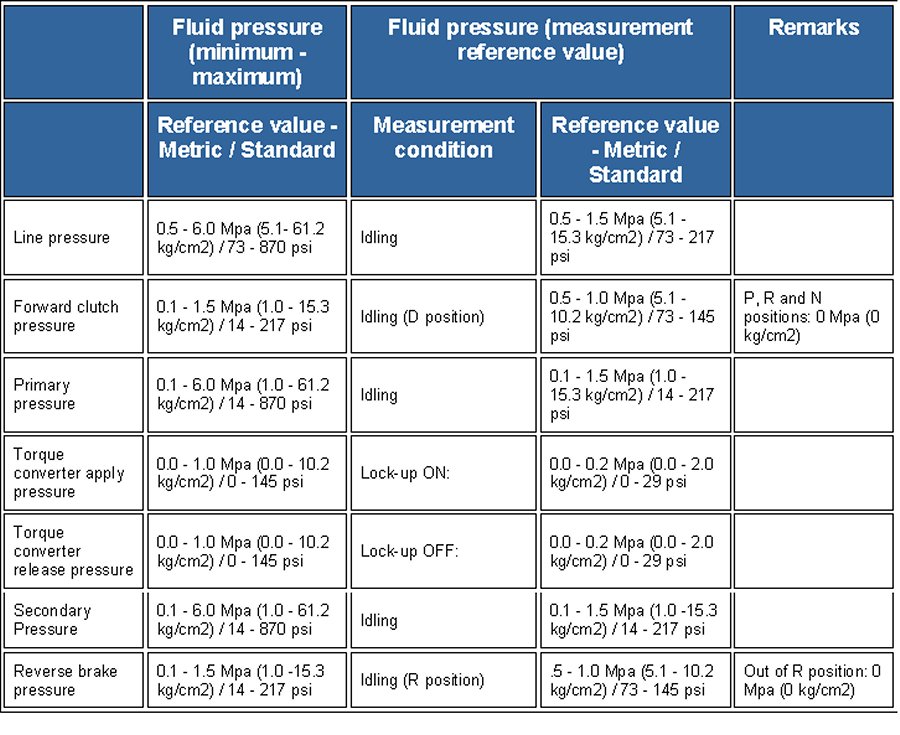

Continuously Variable Transmission/Transaxle: Testing and Inspection

rwk_23382
12/4/09
Tech Auth ch.21

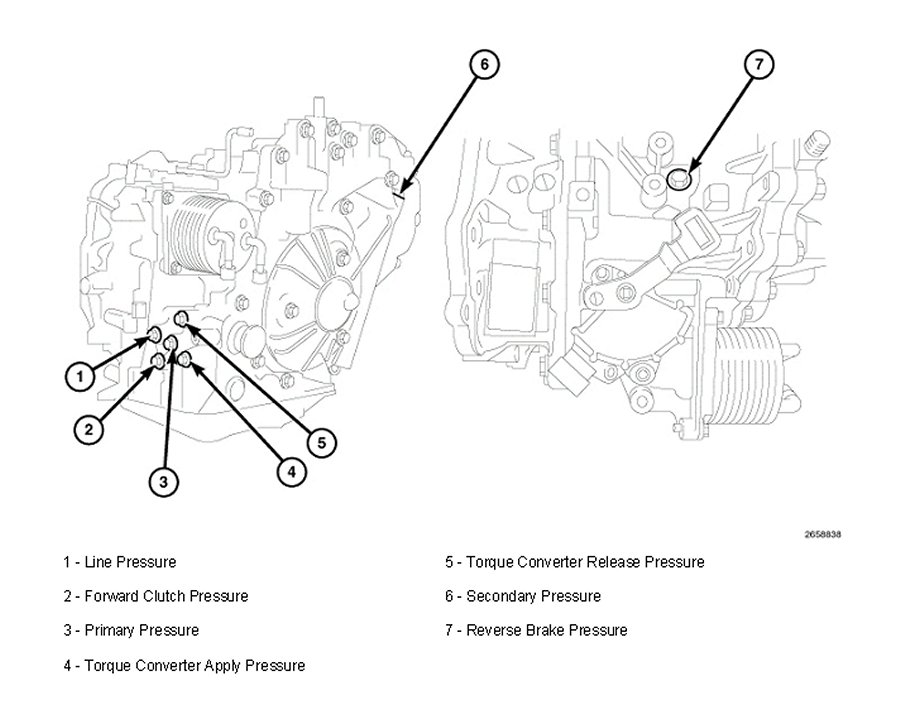

TEST PORTS
