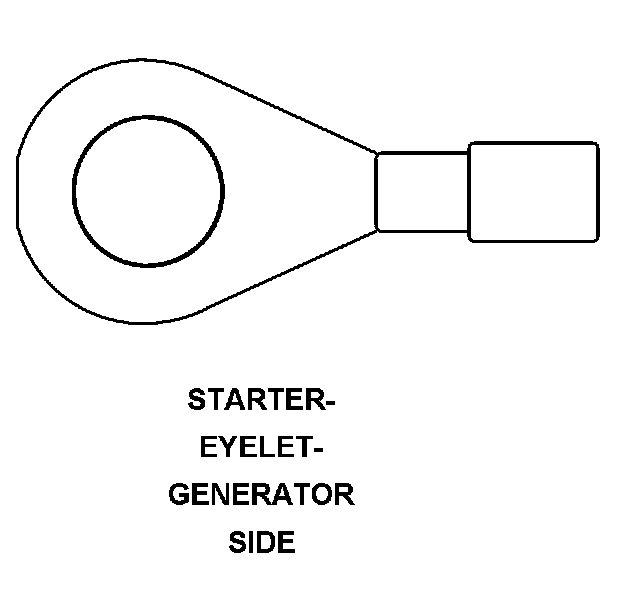

Starter-Eyelet-Generator Side

Component ID: 130
Component : STARTER-EYELET-GENERATOR SIDE

Connector:
Name : STARTER-EYELET-GENERATOR SIDE
Color :
# of pins : 1




Pin Circuit Description
1 A802 8LB B(+)
Pin Circuit Description
1 A802 10DG B(+)

Component Location - 19
