Parking Brake Warning Switch: Locations

Component ID: 226
Component : SWITCH-PARKING BRAKE

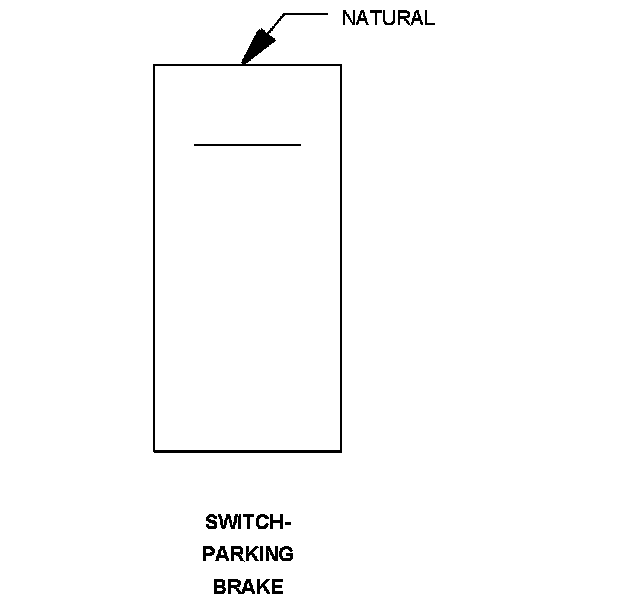

Connector:
Name : SWITCH-PARKING BRAKE
Color : NATURAL
# of pins : 1




Pin Circuit Description
1 B25 20DG/WT PARK BRAKE SWITCH SENSE

Component Location - 34
