Oil Pressure Sender: Diagrams

Component ID: 147

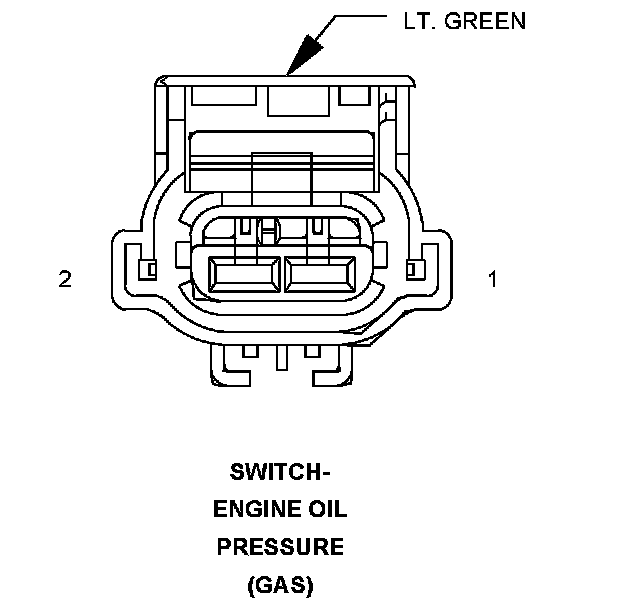

Component : SWITCH-ENGINE OIL PRESSURE

Connector:
Name : SWITCH-ENGINE OIL PRESSURE
Color : LT. GREEN
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 G6 20VT/GY EOP SIGNAL
2 G61 16BK/VT OIL TEMPERATURE SENSOR SIGNAL

Component Location - 14




Component Location - 16




Component Location - 15
