Steering Angle Sensor: Diagrams

Component ID: 350
Component : SENSOR-STEERING ANGLE

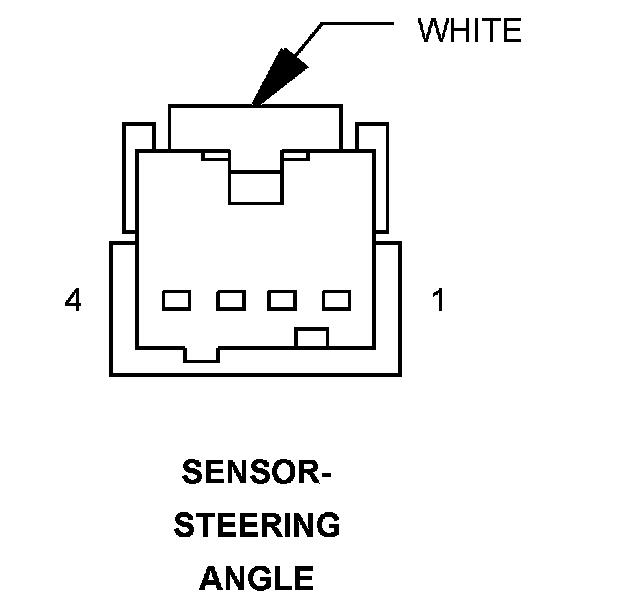

Connector:
Name : SENSOR-STEERING ANGLE
Color : WHITE
# of pins : 4




Pin Circuit Description
1 D65 20DB/LB CAN C BUS (+)
2 D64 20DB/WT CAN C BUS (-)
3 Z937 20BK/YL GROUND
4 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)

Component Location - 29
