Power Mirror Switch: Locations

Component ID: 338
Component : SWITCH-MIRROR

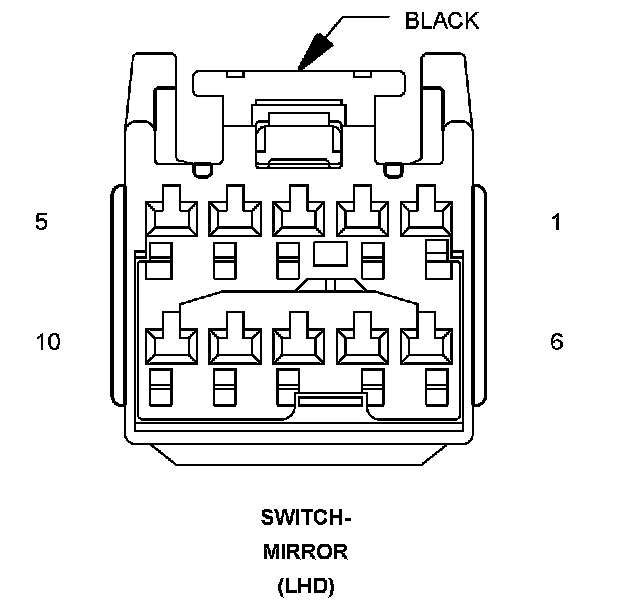

Connector:
Name : SWITCH-MIRROR
Color : BLACK
# of pins : 10
Qualifier : (LHD)




Pin Circuit Description
1 - -
2 - -
3 P76 20YL/PK MIRROR COMMON DRIVER
4 Z928 20BK/LG GROUND
5 A417 20RD/DG FUSED B(+) (I.O.D.)
6 P72 20TN/GY RIGHT MIRROR VERTICAL DRIVER
7 P71 20TN/DG LEFT MIRROR VERTICAL DRIVER
8 P74 20TN/OR RIGHT MIRROR HORIZONTAL DRIVER
9 P75 20TN/OR LEFT MIRROR HORIZONTAL DRIVER
10 - -

Component Location - 50

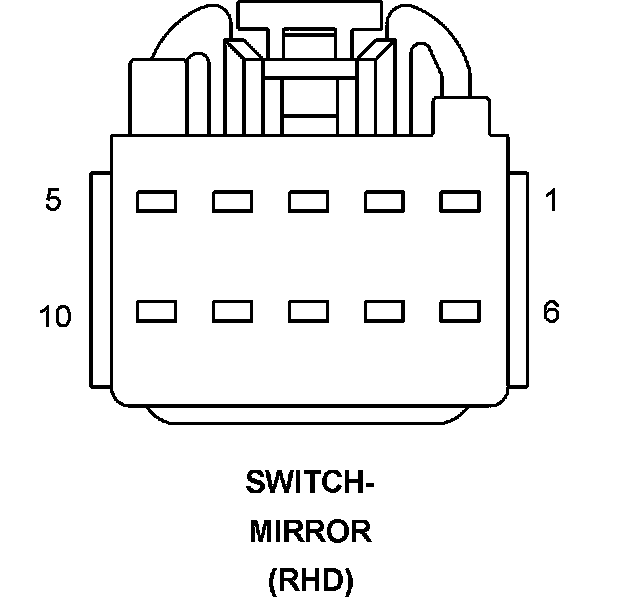

Connector:
Name : SWITCH-MIRROR
Color :
# of pins : 10
Qualifier : (RHD)




Pin Circuit Description
1 P110 20LG/WT FOLDING MIRROR RETURN
2 - -
3 P76 20YL/PK MIRROR COMMON DRIVER
4 Z928 20BK/LG GROUND
5 A417 20RD/DG FUSED B(+) (I.O.D.)
6 P72 20TN/GY RIGHT MIRROR VERTICAL DRIVER
7 P71 20TN/DG LEFT MIRROR VERTICAL DRIVER
8 P74 20TN/OR RIGHT MIRROR HORIZONTAL DRIVER
9 P75 20TN/OR LEFT MIRROR HORIZONTAL DRIVER
10 P699 20LG/DG MIRROR-POWER FOLDING/UNFOLDING

Component Location - 50
