Integrated Accessory Switch Assembly: Diagrams

Component ID: 213
Component : SWITCH-BANK

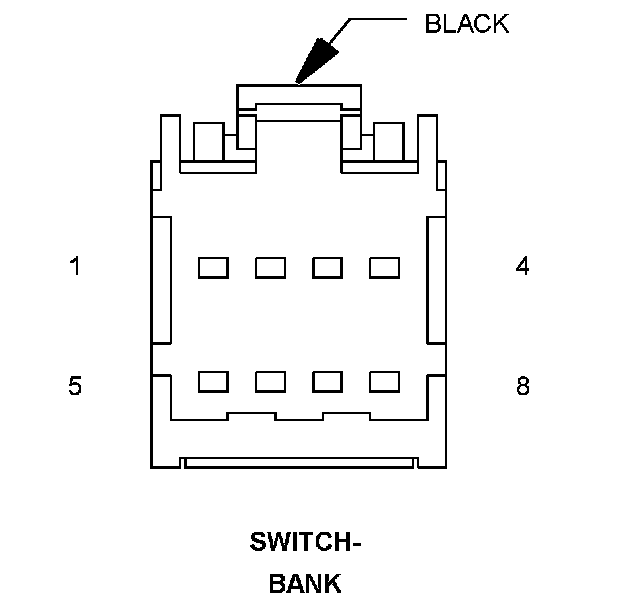

Connector:
Name : SWITCH-BANK
Color : BLACK
# of pins : 8




Pin Circuit Description
1 - -
2 - -
3 - -
4 - -
5 - -
6 A935 20RD/LB FUSED B(+)
7 Z940 20BK/LG GROUND
8 D506 20WT/DG LIN BUS

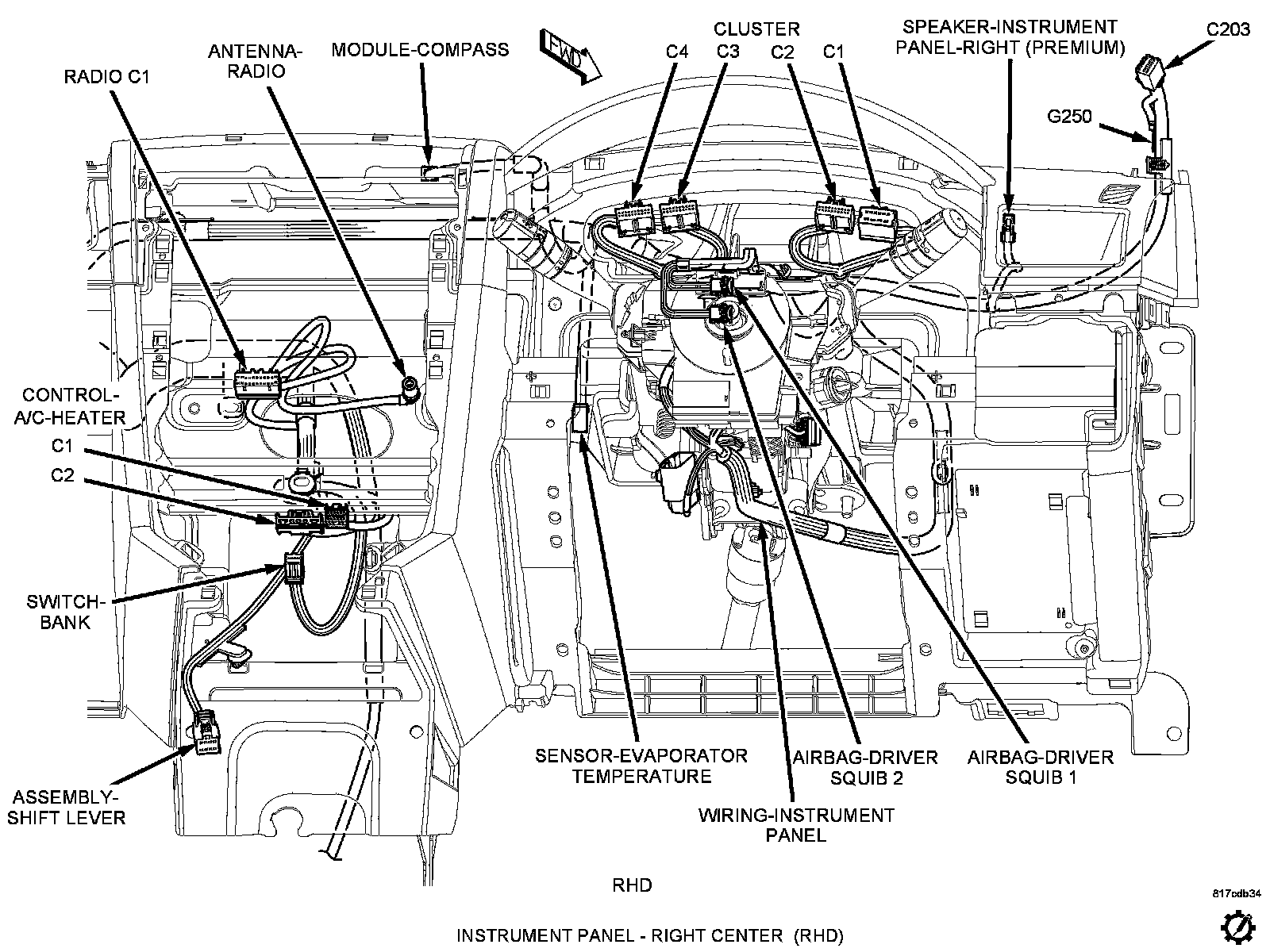

Component Location - 27




Component Location - 32




Component Location - 34
