Rear Seat Belt Retractor - Installation

INSTALLATION

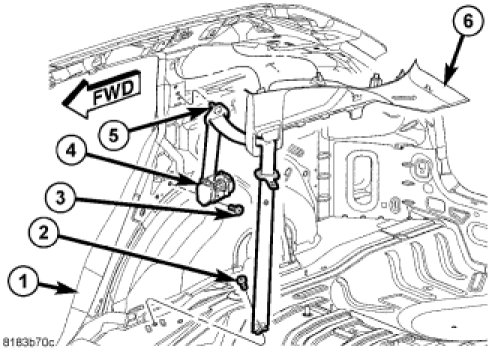

1. Position the rear outer seatbelt retractor (4) into the C-pillar (1).
2. Install the rear outer seatbelt retractor retaining bolt (3). Tighten bolt to 40 Nm (29.5 ft. lbs.).
3. Install the upper seatbelt turning loop bolt (5). Tighten bolt to 40 Nm (29.5 ft. lbs.).
4. Feed the seatbelt webbing through the upper C-pillar trim panel (6).
5. Install the rear outer seatbelt anchor bolt (2). Tighten bolt to 40 Nm (29.5 ft. lbs.).
6. Install the rear quarter panel trim C-Pillar Trim Panel-Installation.
7. Install upper C-pillar trim (6) C-Pillar Trim Panel-Installation.
