Rear Center Seat Belt Retractor - Removal

REMOVAL

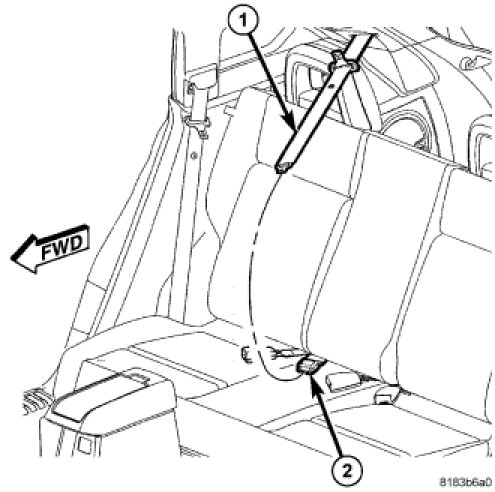

1. If center rear seatbelt (1) is latched to its anchor, detach the Quick Connect Anchor by depressing tab (2).




2. If seatbelt is unlatched from its anchor then remove it from its stowage slot on the right quarter trim panel.




3. Remove C-pillar upper trim panel (1) C-Pillar Trim Panel-Removal.
4. Feed seatbelt webbing through C-pillar upper trim panel.
5. Remove the rear center seatbelt upper turning loop bolt (2).
6. Remove the rear center seatbelt retractor retaining bolt (5) from the D-pillar (3).
7. Remove rear center seatbelt retractor (4) from the vehicle.
