Installation

INSTALLATION

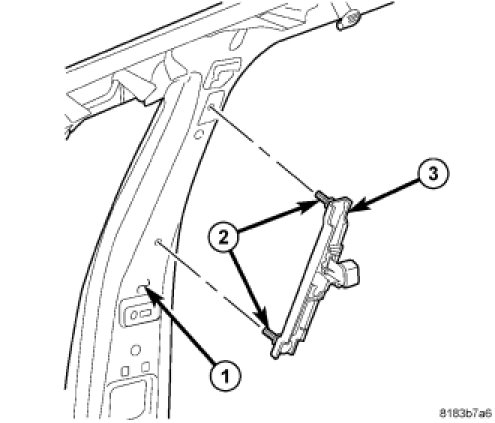

1. Install front seat belt height adjuster (3) in vehicle.
2. Tighten the two bolts (2) attaching front seat belt height adjuster (3) to B-pillar (1) to 40 Nm (29.5 ft. lbs.).




3. Install the upper B-pillar trim B-Pillar Trim.
4. Install the one bolt to the front seat belt retractor turning loop (4). Tighten bolt to 40 Nm (29.5 ft. lbs.).




5. Snap the turning loop cover (2) onto the height adjuster.
