Airbag-Side Curtain-Right

Component ID: 253

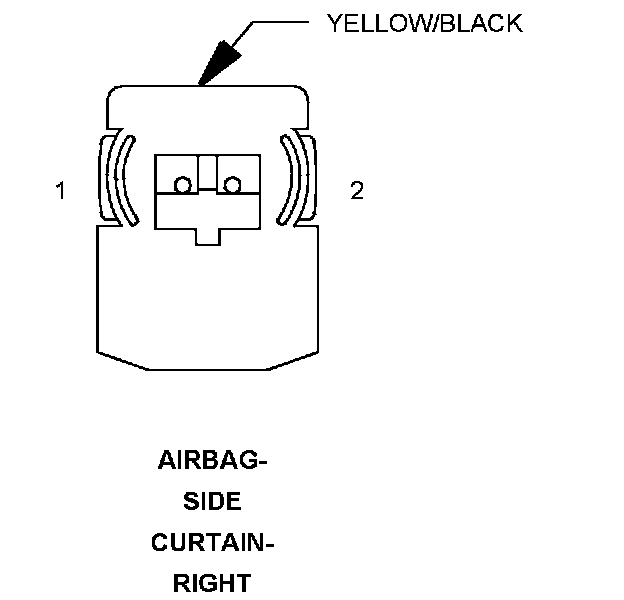

Component : AIRBAG-SIDE CURTAIN-RIGHT

Connector:
Name : AIRBAG-SIDE CURTAIN-RIGHT
Color : YELLOW/BLACK
# of pins : 2




Pin Circuit Description
1 R4 20OR/LB RIGHT CURTAIN SQUIB 1 LINE 1
2 R2 20WT/LB RIGHT CURTAIN SQUIB 1 LINE 2

Component Location - 59
