Airbag-Side Curtain-Left

Component ID: 254

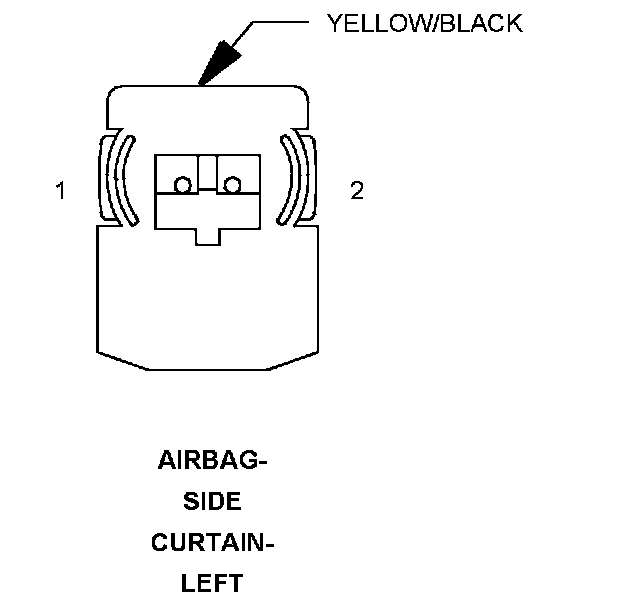

Component : AIRBAG-SIDE CURTAIN-LEFT

Connector:
Name : AIRBAG-SIDE CURTAIN-LEFT
Color : YELLOW/BLACK
# of pins : 2




Pin Circuit Description
1 R1 20LB/WT LEFT CURTAIN SQUIB 1 LINE 2
2 R3 20LB/OR LEFT CURTAIN SQUIB 1 LINE 1

Component Location - 61
