Airbag-Knee Blocker-Driver

Component ID: 264

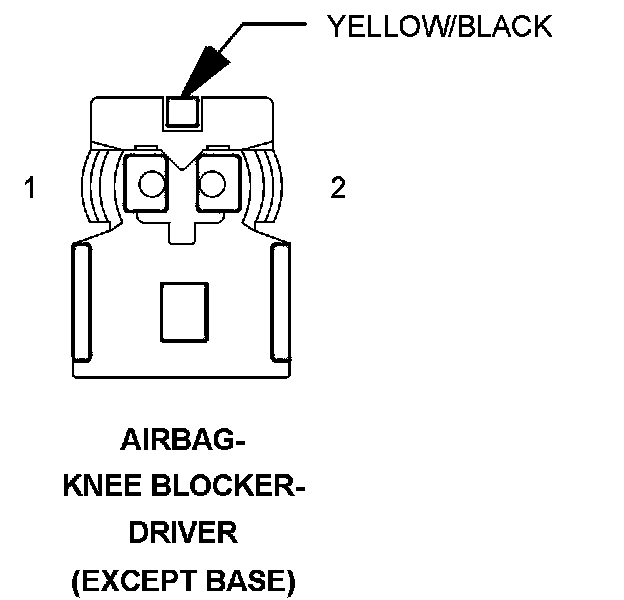

Component : AIRBAG-KNEE BLOCKER-DRIVER

Connector:
Name : AIRBAG-KNEE BLOCKER-DRIVER
Color : YELLOW/BLACK
# of pins : 2
Qualifier : (EXCEPT BASE)




Pin Circuit Description
1 R9 18LB/YL DRIVER KNEE BLOCKER SQUIB LINE 2
2 R11 18LB/DB DRIVER KNEE BLOCKER SQUIB LINE 1

Component Location - 25




Component Location - 27
