Airbag-Driver Squib 1

Component ID: 269

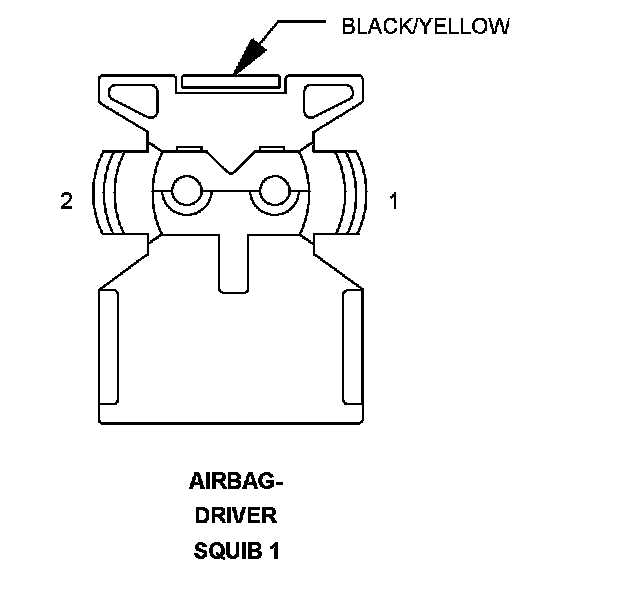

Component : AIRBAG-DRIVER SQUIB 1

Connector:
Name : AIRBAG-DRIVER SQUIB 1
Color : BLACK/YELLOW
# of pins : 2




Pin Circuit Description
1 R45 20LB DRIVER SQUIB 1 LINE 1
2 R43 20BR DRIVER SQUIB 1 LINE 2

Component Location - 27




Component Location - 32




Component Location - 33
