Transponder-Tire Pressure-Right Rear

Component ID: 230
Component : TRANSPONDER-TIRE PRESSURE-RIGHT REAR

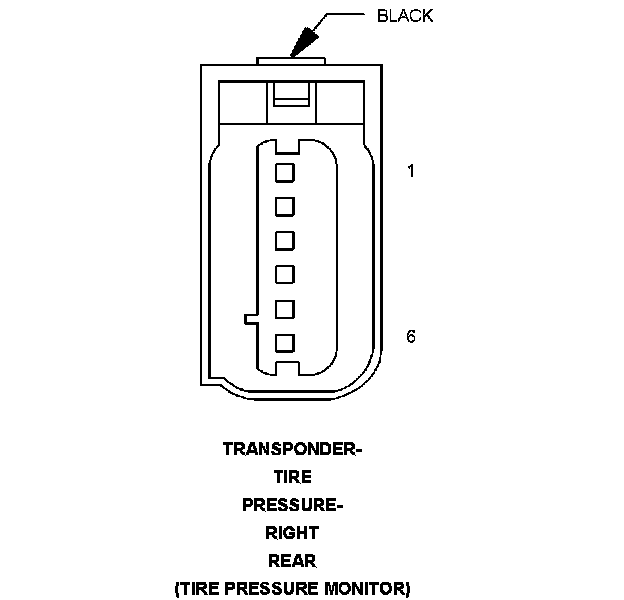

Connector:
Name : TRANSPONDER-TIRE PRESSURE-RIGHT REAR
Color : BLACK
# of pins : 6
Qualifier : (TIRE PRESSURE MONITOR)




Pin Circuit Description
1 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
2 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
3 Z965 20BK/GY GROUND
4 - -
5 - -
6 Z965 20BK/GY GROUND

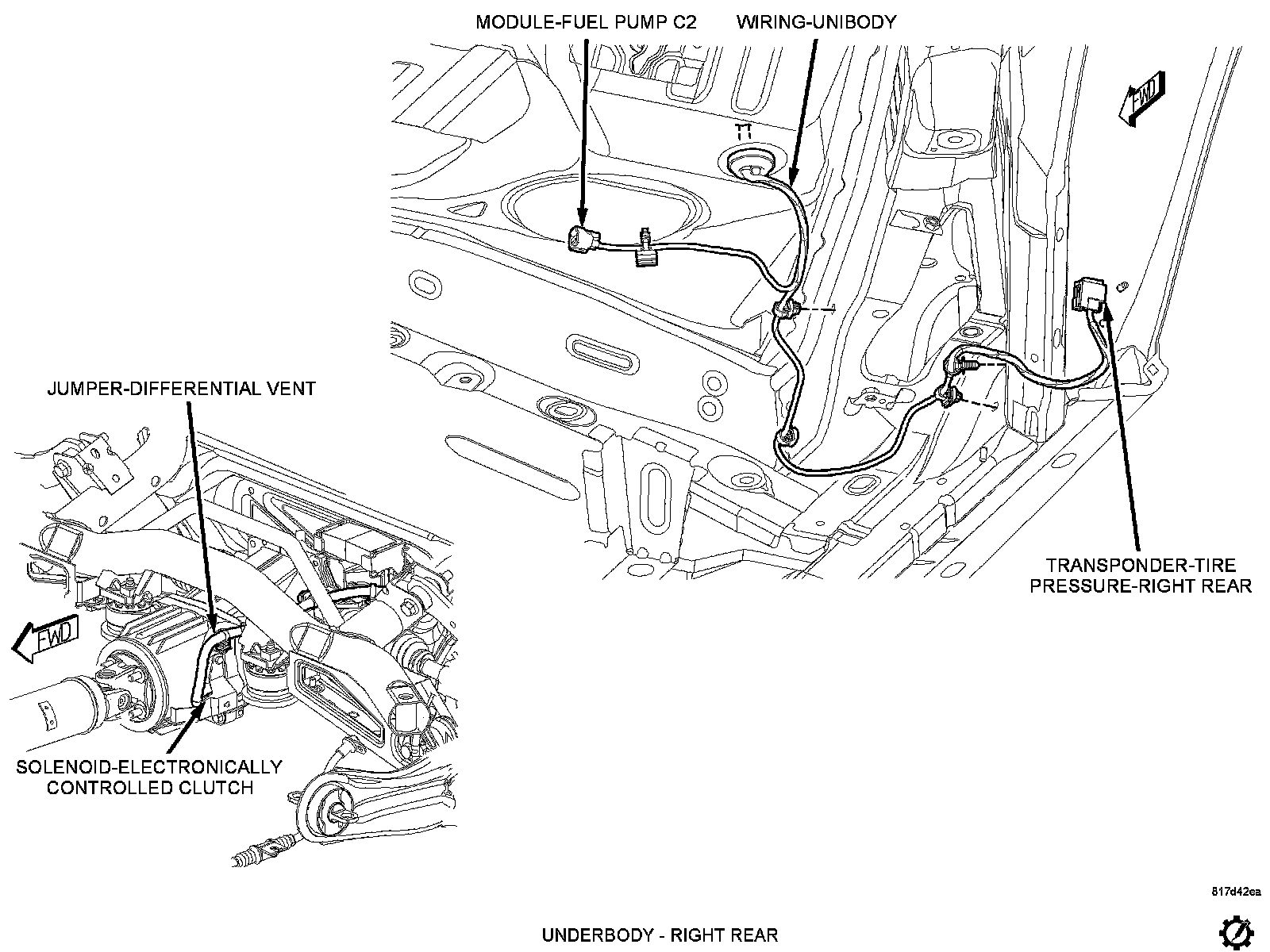

Component Location - 55
