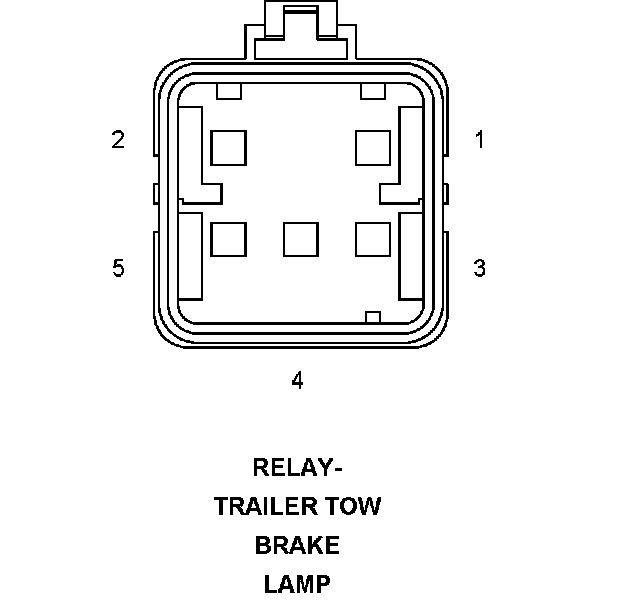

Relay-Trailer Tow Brake Lamp

Component ID: 320
Component : RELAY-TRAILER TOW BRAKE LAMP

Connector:
Name : RELAY-TRAILER TOW BRAKE LAMP
Color :
# of pins : 5
Gender : FEMALE




Pin Circuit Description
1 A100 18RD/VT FUSED B(+)
2 Z960 18BK/LB GROUND
3 L55 20WT/OR STOP LAMP CONTROL OUTPUT
4 L651 18WT/LG LEFT TRAILER TOW STOP LAMP RELAY OUTPUT
5 L650 18WT/DG RIGHT TRAILER TOW STOP LAMP RELAY OUTPUT
