Coil-Ignition 2

Component ID: 162

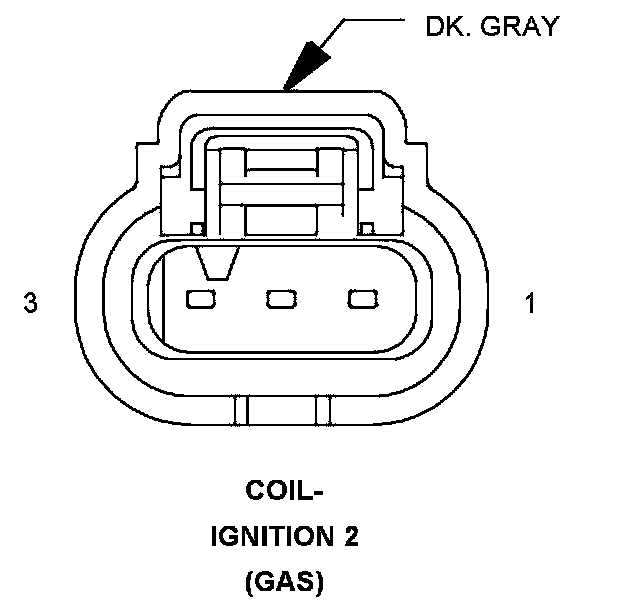

Component : COIL-IGNITION 2

Connector:
Name : COIL-IGNITION 2
Color : DK. GRAY
# of pins : 3
Qualifier : (GAS)




Pin Circuit Description
1 - -
2 K17 18DB/TN COIL 2 CONTROL
3 K344 18DB/LB FUSED MAIN RELAY OUTPUT

Component Location - 17
