Throttle Body: Diagrams

Component ID: 150

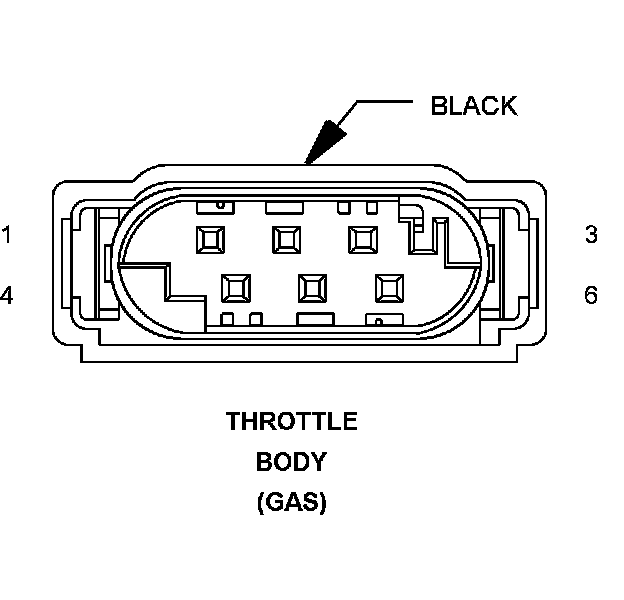

Component : THROTTLE BODY

Connector:
Name : THROTTLE BODY
Color : BLACK
# of pins : 6
Qualifier : (GAS)




Pin Circuit Description
1 K124 20DB/GY ETC MOTOR (+)
2 K922 20BR TP SENSOR GROUND
3 F855 20PK/YL 5 VOLT SUPPLY
4 K126 20DB/LG ETC MOTOR (-)
5 K22 20OR/BR TP SIGNAL 1
6 K122 20DG/BR TP SIGNAL 2

Component Location - 14




Component Location - 15
