Fuel Pump: Locations

Component ID: 166
Component : MODULE-FUEL PUMP

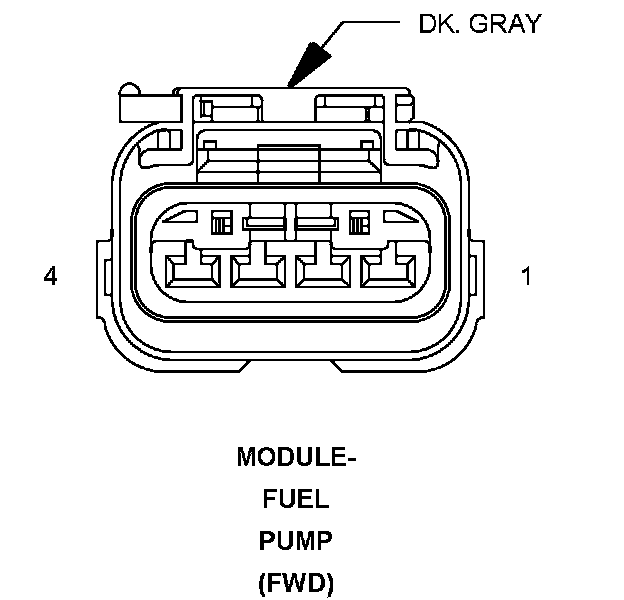

Connector:
Name : MODULE-FUEL PUMP
Color : DK. GRAY
# of pins : 4
Qualifier : (FWD)




Pin Circuit Description
1 Z965 14BK/GY GROUND
2 Z965 20BK/GY GROUND
3 N4 20DB/WT FUEL LEVEL SIGNAL 1
4 N1 16DB/OR FUEL PUMP CONTROL OUTPUT
5 - -

Component Location - 54




Component Location - 55

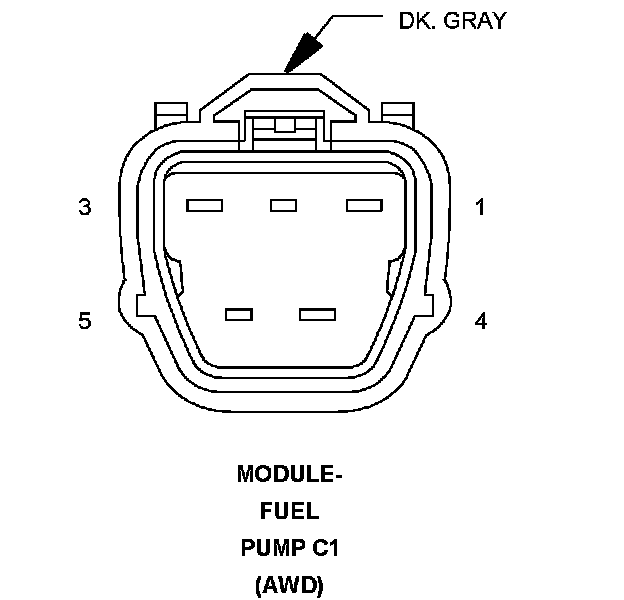

Connector:
Name : MODULE-FUEL PUMP C1
Color : DK. GRAY
# of pins : 5
Qualifier : (AWD)




Pin Circuit Description
1 Z965 20BK/GY GROUND
2 N4 20DB/WT FUEL LEVEL SIGNAL 1
3 - -
4 Z964 16BK/WT GROUND
4 Z965 16BK/GY GROUND
5 N1 16DB/OR FUEL PUMP CONTROL OUTPUT

Component Location - 54




Component Location - 55

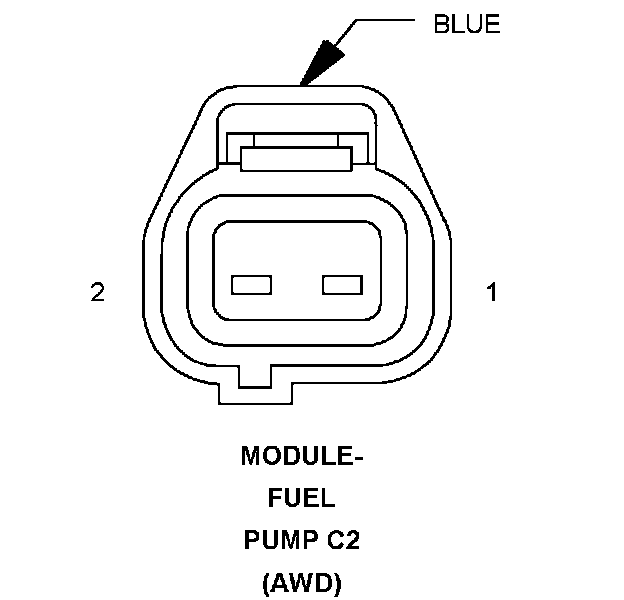

Connector:
Name : MODULE-FUEL PUMP C2
Color : BLUE
# of pins : 2
Qualifier : (AWD)




Pin Circuit Description
1 Z965 20BK/GY GROUND
2 N5 20DB/BK FUEL LEVEL SIGNAL 2

Component Location - 54




Component Location - 55
