Injector-Fuel 4

Component ID: 137
Component : INJECTOR-FUEL 4

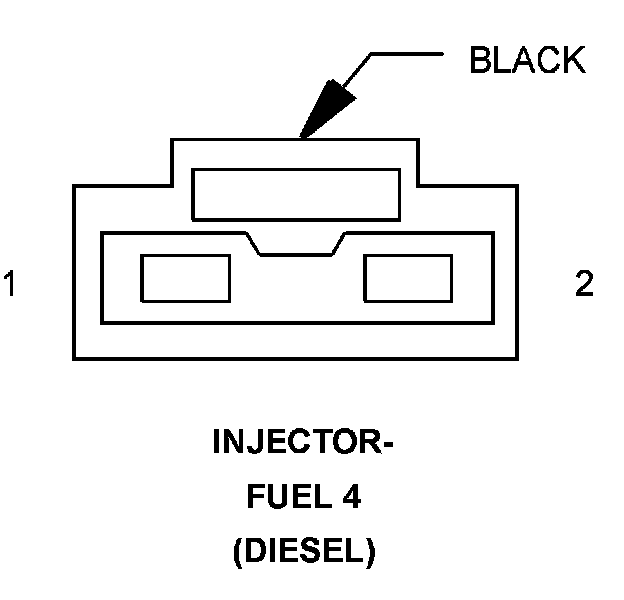

Connector:
Name : INJECTOR-FUEL 4
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 K663 16BR/YL FUEL INJECTOR HIGH-SIDE COMMON
2 K614 16BR/LB FUEL INJECTOR 4 LOW-SIDE CONTROL

Component Location - 17




Component Location - 22

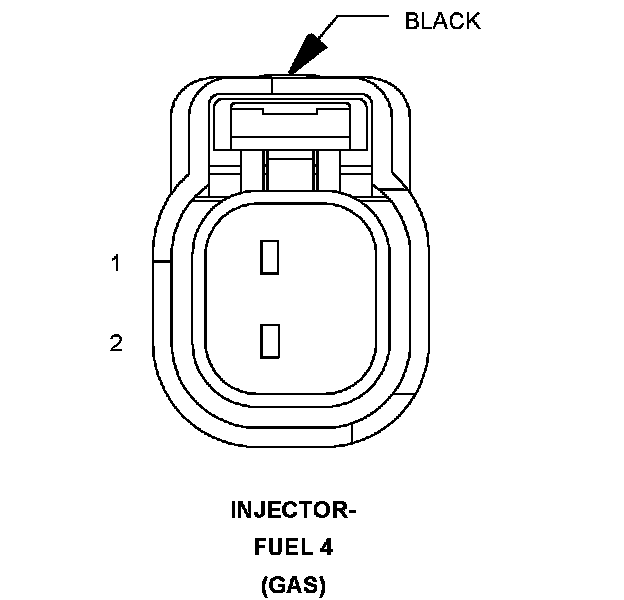

Connector:
Name : INJECTOR-FUEL 4
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K14 20BR/TN INJECTOR 4 CONTROL
2 K343 20BR/YL FUSED MAIN RELAY OUTPUT

Component Location - 17




Component Location - 22
