Injector-Fuel 3

Component ID: 136
Component : INJECTOR-FUEL 3

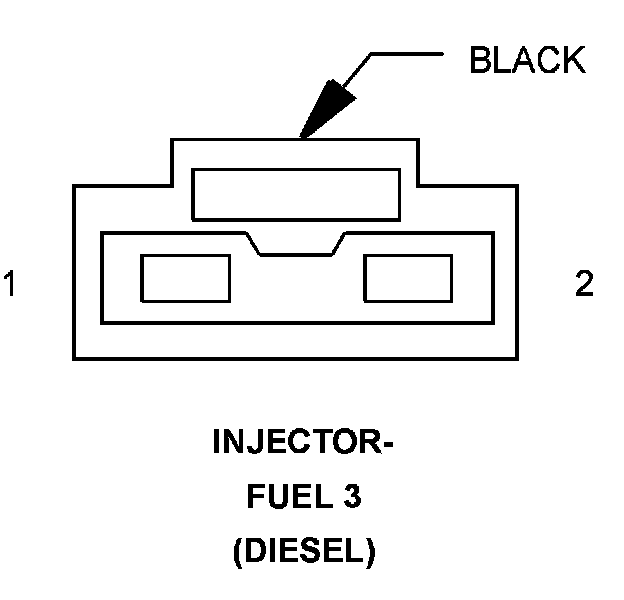

Connector:
Name : INJECTOR-FUEL 3
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 K663 16BR/YL FUEL INJECTOR HIGH-SIDE COMMON
2 K613 16BR/WT FUEL INJECTOR 3 LOW-SIDE CONTROL

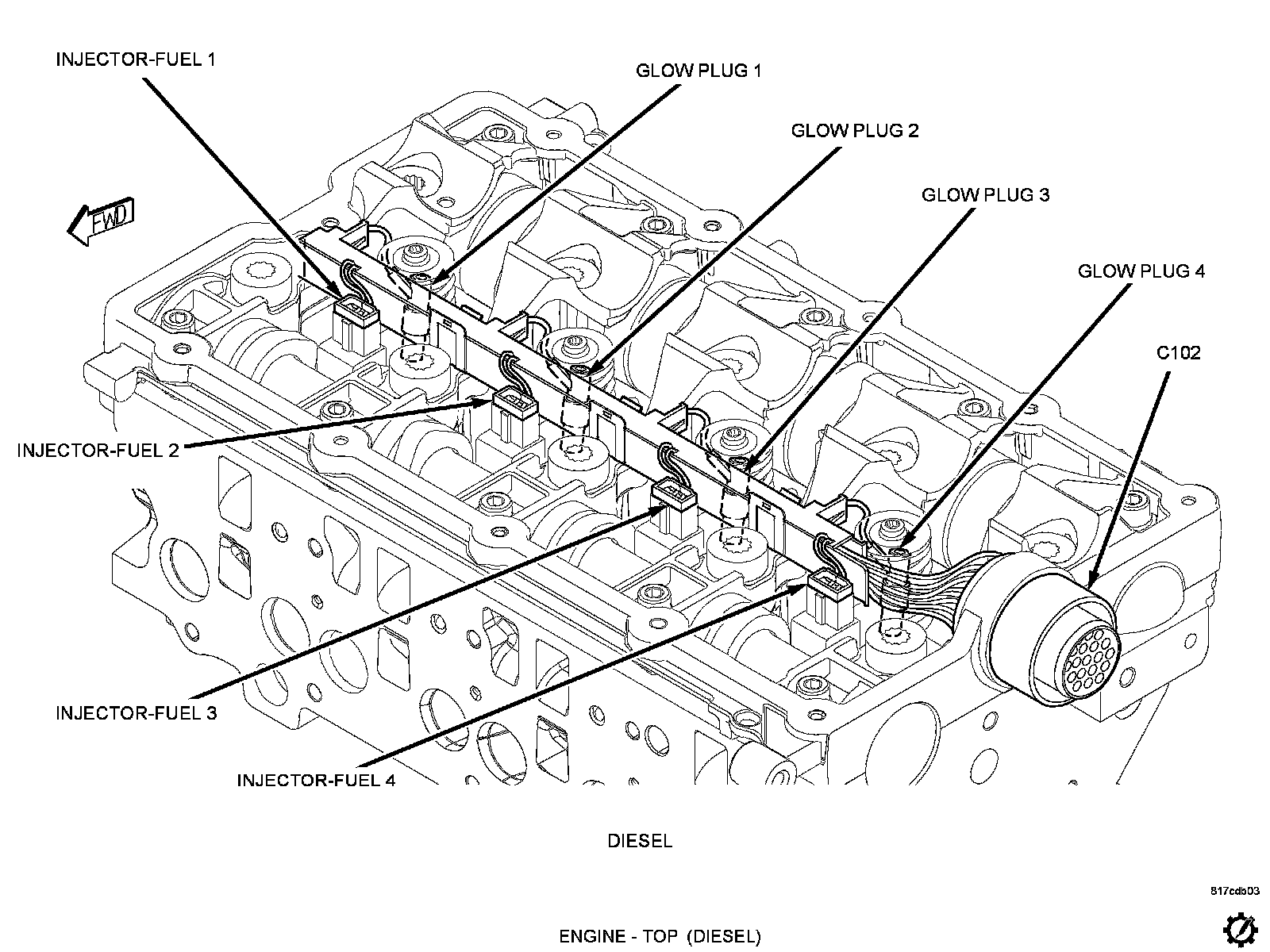

Component Location - 17




Component Location - 22

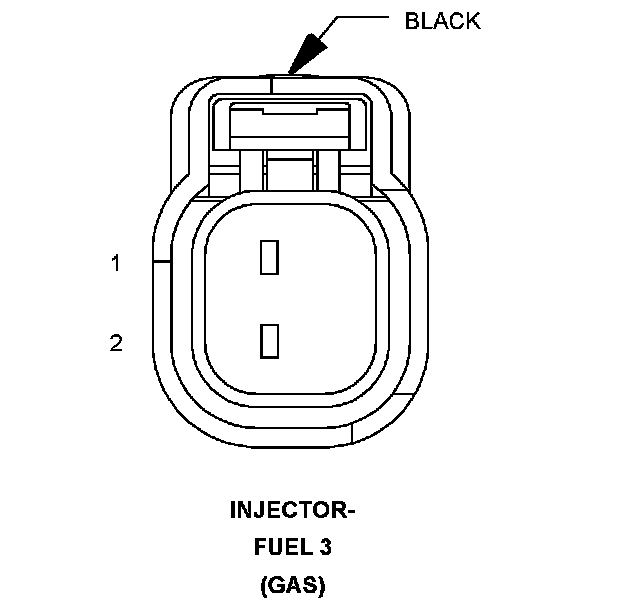

Connector:
Name : INJECTOR-FUEL 3
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K13 20BR/LB INJECTOR 3 CONTROL
2 K343 20BR/YL FUSED MAIN RELAY OUTPUT

Component Location - 17




Component Location - 22
