Injector-Fuel 2

Component ID: 135
Component : INJECTOR-FUEL 2

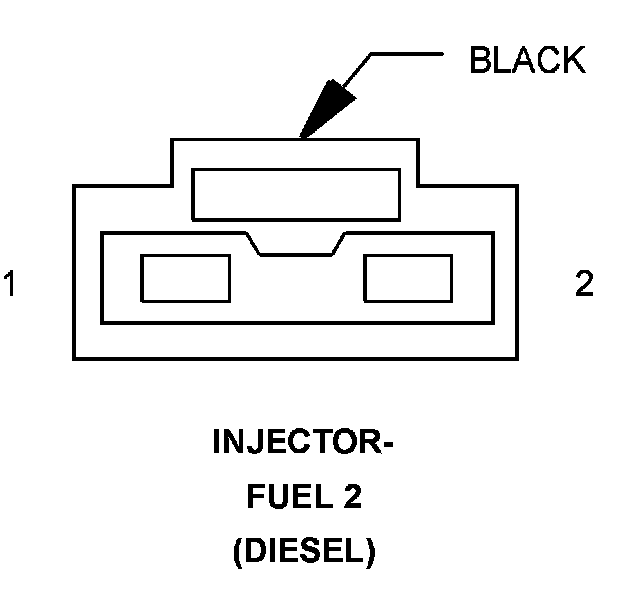

Connector:
Name : INJECTOR-FUEL 2
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 K663 16BR/YL FUEL INJECTOR HIGH-SIDE COMMON
2 K612 16BR/LG FUEL INJECTOR 2 LOW-SIDE CONTROL

Component Location - 17




Component Location - 22

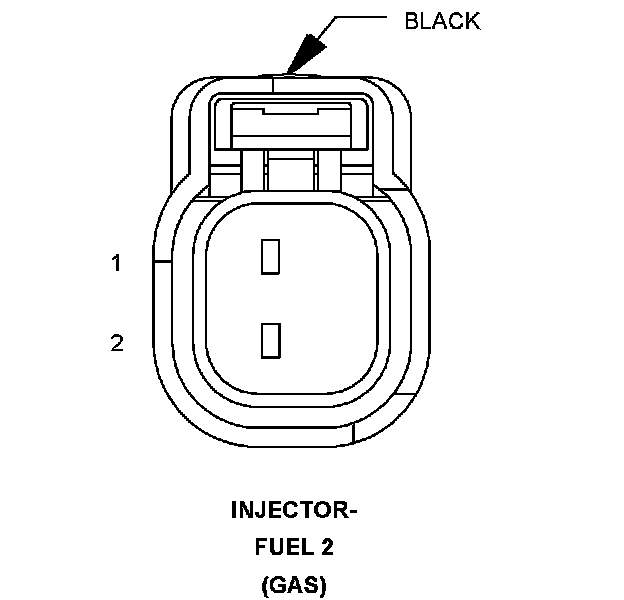

Connector:
Name : INJECTOR-FUEL 2
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K12 20BR/DB INJECTOR 2 CONTROL
2 K343 20BR/YL FUSED MAIN RELAY OUTPUT

Component Location - 17




Component Location - 22
