Leak Detector: Locations

Component ID: 140

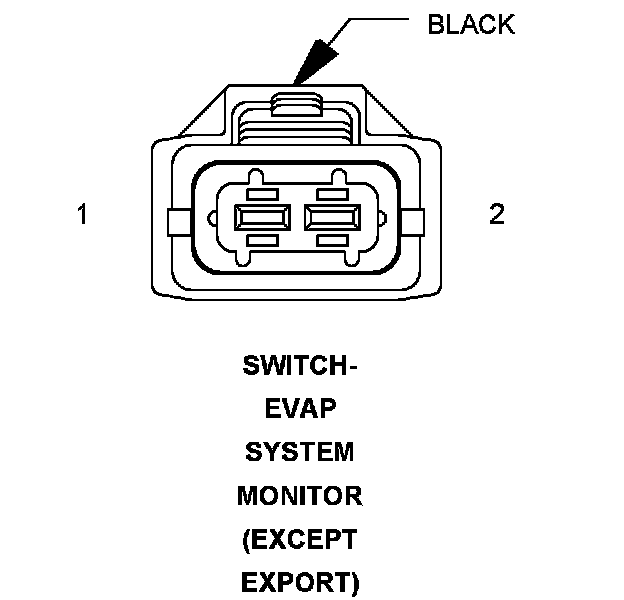

Component : SWITCH-EVAP SYSTEM MONITOR

Connector:
Name : SWITCH-EVAP SYSTEM MONITOR
Color : BLACK
# of pins : 2
Qualifier : (EXCEPT EXPORT)




Pin Circuit Description
1 Z965 20BK GROUND
Pin Circuit Description
1 Z965 20BK/GY GROUND
2 K107 18VT/LB ESM SIGNAL
2 K107 20VT/LB ESM SIGNAL

Component Location - 54
