Canister Purge Solenoid: Diagrams

Component ID: 149
Component : SOLENOID-EVAP PURGE

Connector:

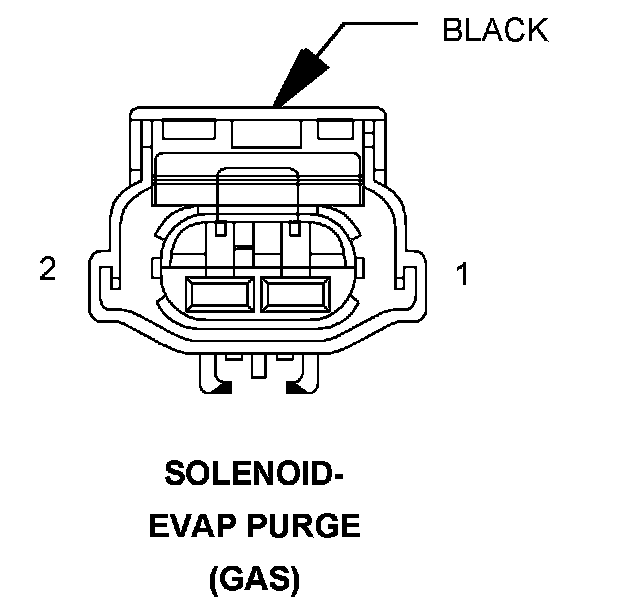

Name : SOLENOID-EVAP PURGE
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K52 20DB/WT EVAP PURGE CONTROL
2 K70 20DB/BR EVAP PURGE RETURN

Component Location - 8
