Air Temperature Sensor ( Ambient / Intake ): Locations

Component ID: 157
Component : SENSOR-INTAKE AIR TEMPERATURE

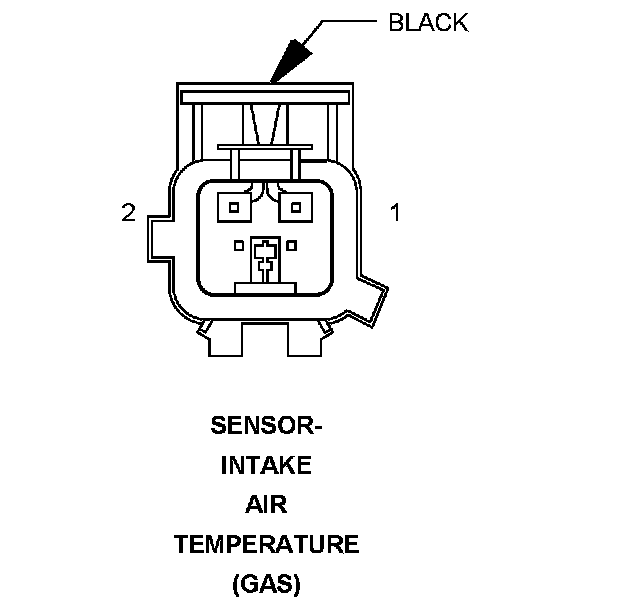

Connector:
Name : SENSOR-INTAKE AIR TEMPERATURE
Color : BLACK
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 K21 20BK/RD IAT SIGNAL
2 K915 20BR/WT SENSOR GROUND

Component Location - 14




Component Location - 15

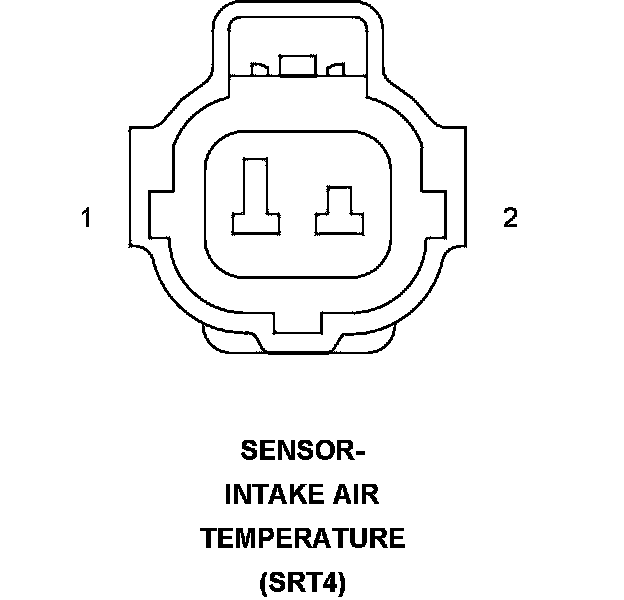

Connector:
Name : SENSOR-INTAKE AIR TEMPERATURE
Color :
# of pins : 2
Qualifier : (SRT4)




Pin Circuit Description
1 K21 20BK/RD IAT SIGNAL
2 K915 20BR/WT SENSOR GROUND

Component Location - 14




Component Location - 15
