Lamp-Turn-Right Front

Component ID: 367
Component : LAMP-TURN-RIGHT FRONT

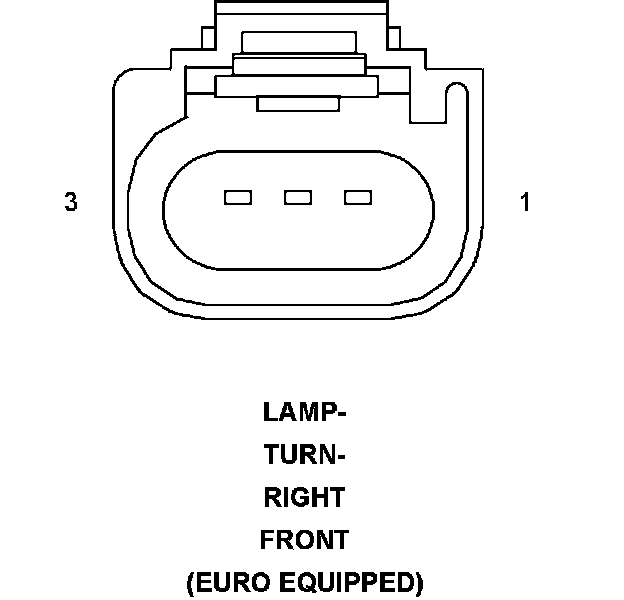

Connector:
Name : LAMP-TURN-RIGHT FRONT
Color :
# of pins : 3
Qualifier : (EURO EQUIPPED)




Pin Circuit Description
1 Z908 20BK/PK GROUND
2 - -
3 L60 20WT/TN RIGHT TURN SIGNAL

Component Location - 2

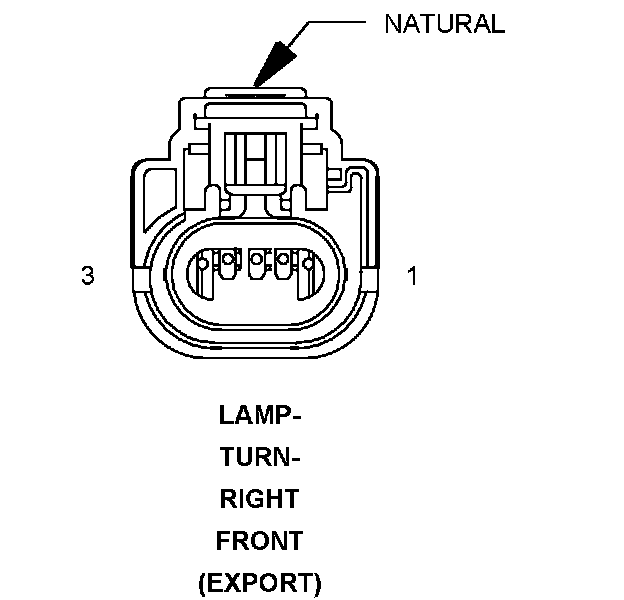

Connector:
Name : LAMP-TURN-RIGHT FRONT
Color : NATURAL
# of pins : 3
Qualifier : (EXPORT)




Pin Circuit Description
1 Z908 20BK/PK GROUND
2 - -
3 L60 20WT/TN RIGHT TURN SIGNAL

Component Location - 2
