Lamp-Tail Turn-Right

Component ID: 313

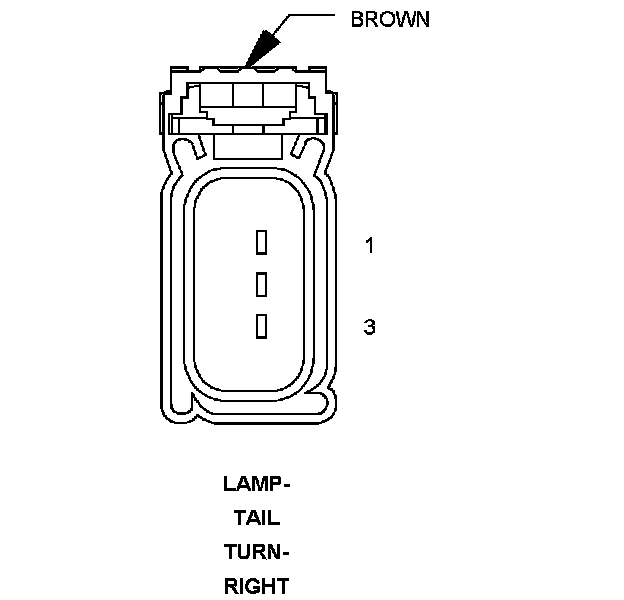

Component : LAMP-TAIL TURN-RIGHT

Connector:
Name : LAMP-TAIL TURN-RIGHT
Color : BROWN
# of pins : 3




Pin Circuit Description
1 Z960 18BK/WT GROUND
2 - -
3 L62 20WT/YL RIGHT REAR TURN SIGNAL

Component Location - 59




Component Location - 65




Component Location - 66
