Lamp-Tail Turn-Left
Component ID: 312

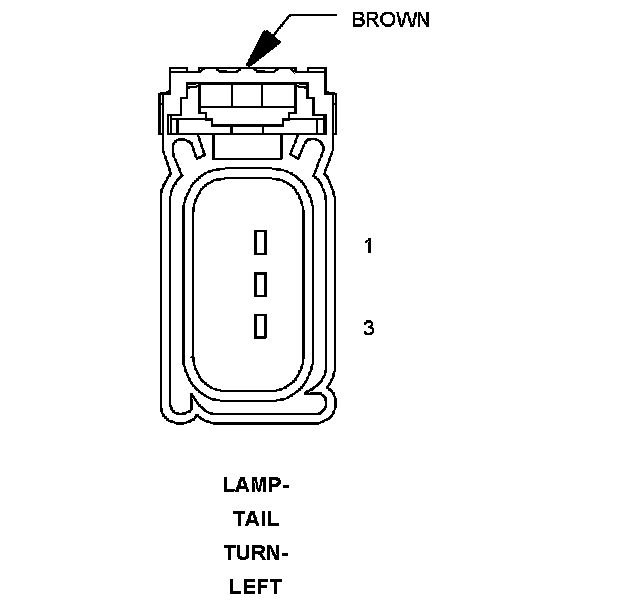

Component : LAMP-TAIL TURN-LEFT
Connector:
Name : LAMP-TAIL TURN-LEFT
Color : BROWN
# of pins : 3
Pin Circuit Description
1 Z960 18BK/LB GROUND
2 - -
3 L63 20DG/RD LEFT REAR TURN SIGNAL
Component Location - 56
Component ID: 312
Component : LAMP-TAIL TURN-LEFT
Connector:
Name : LAMP-TAIL TURN-LEFT
Color : BROWN
# of pins : 3
Pin Circuit Description
1 Z960 18BK/LB GROUND
2 - -
3 L63 20DG/RD LEFT REAR TURN SIGNAL
Component Location - 56
