Lamp-Park/Turn-Right Front

Component ID: 303
Component : LAMP-PARK/TURN-RIGHT FRONT

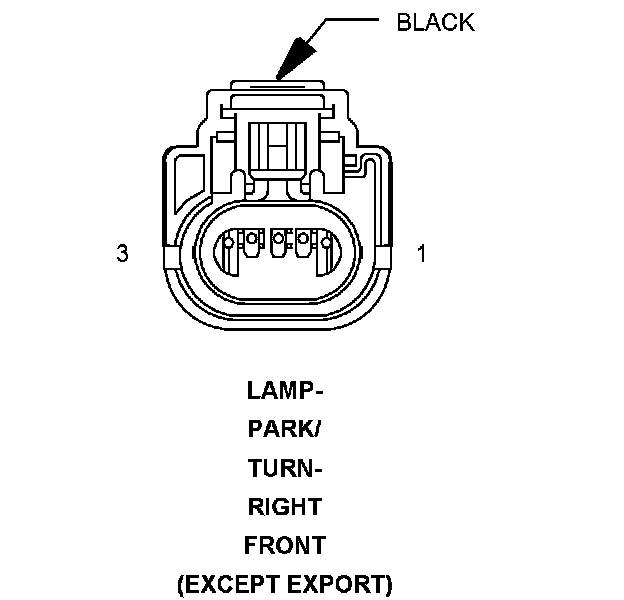

Connector:
Name : LAMP-PARK/TURN-RIGHT FRONT
Color : BLACK
# of pins : 3
Qualifier : (EXCEPT EXPORT)




Pin Circuit Description
1 Z908 20BK/PK GROUND
2 L70 20WT/GY HEADLAMP SWITCH OUTPUT
3 L60 20WT/TN RIGHT TURN SIGNAL

Component Location - 1
