Lamp-Tail/Stop-Left

Component ID: 316

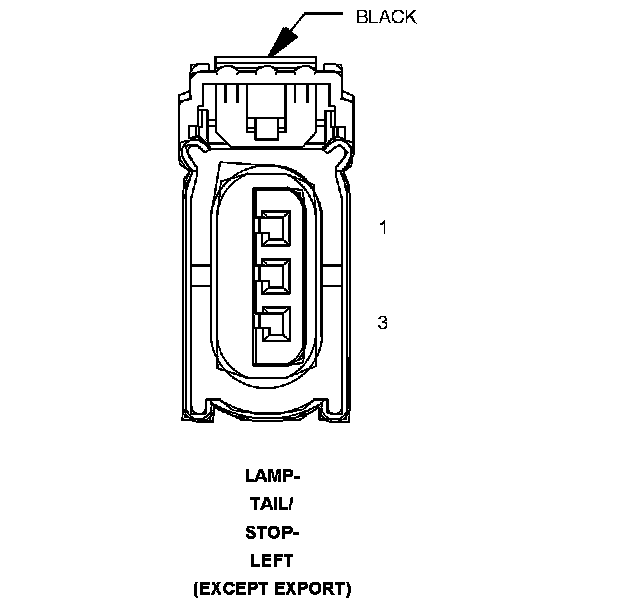

Component : LAMP-TAIL/STOP-LEFT

Connector:
Name : LAMP-TAIL/STOP-LEFT
Color : BLACK
# of pins : 3
Qualifier : (EXCEPT EXPORT)




Pin Circuit Description
1 L55 20WT/OR STOP LAMP CONTROL OUTPUT
2 L217 20WT/VT PARK LAMP CONTROL OUTPUT
3 Z960 18BK/LG GROUND

Component Location - 56
