Relay-Trailer Tow-Right

Component ID: 372

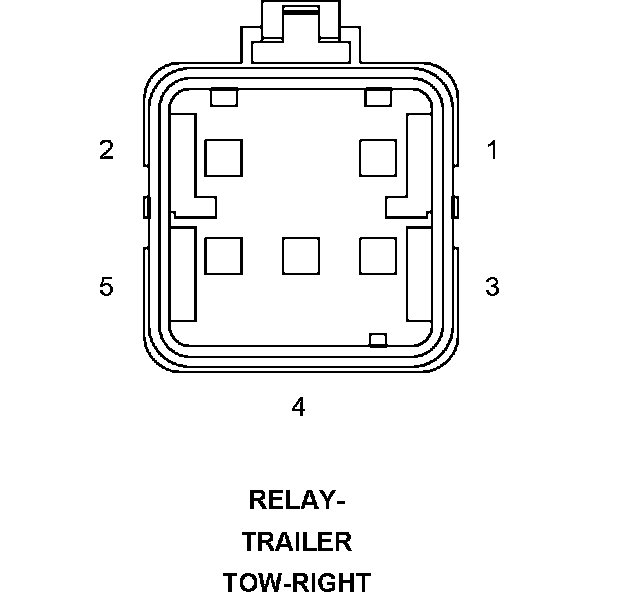

Component : RELAY-TRAILER TOW-RIGHT

Connector:
Name : RELAY-TRAILER TOW-RIGHT
Color :
# of pins : 5
Gender : FEMALE




Pin Circuit Description
1 L614 18WT/DB TRAILER TOW RIGHT STOP/TURN SIGNAL
2 L62 20WT/YL RIGHT REAR TURN SIGNAL CONTROL
3 Z960 18BK/LB GROUND
4 L650 18WT/DG RIGHT TRAILER TOW STOP LAMP RELAY OUTPUT
5 L651 18WT/LG LEFT TRAILER TOW STOP LAMP RELAY OUTPUT

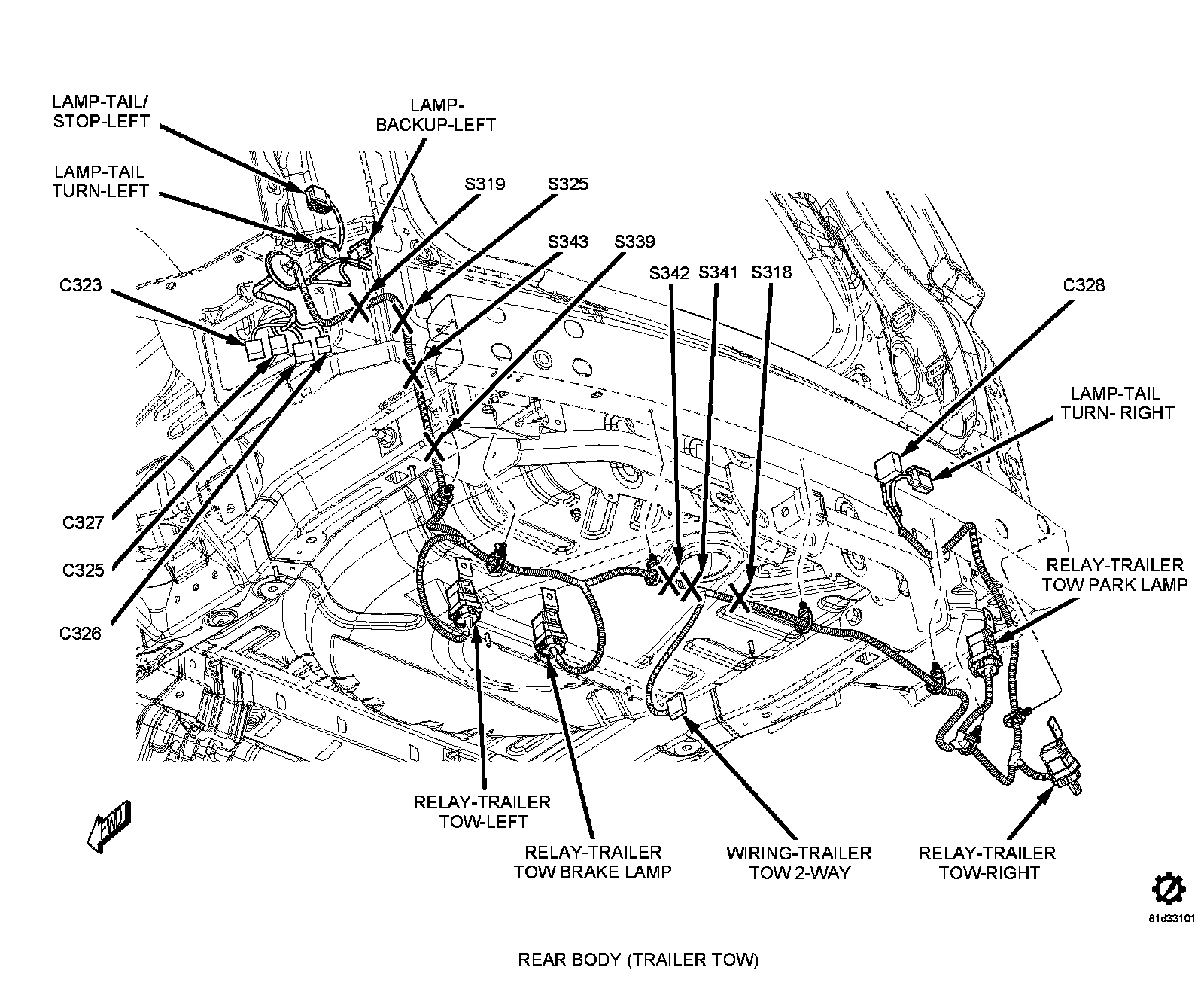

Component Location - 67
