License Plate Lamp: Diagrams

Component ID: 314
Component : LAMP-LICENSE

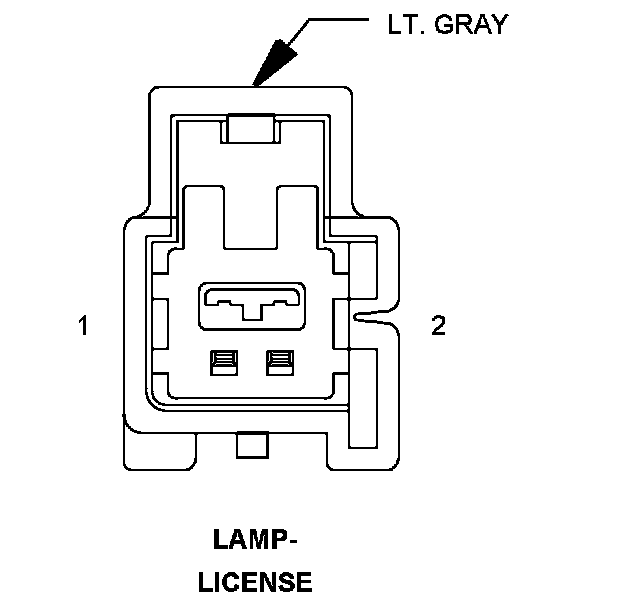

Connector:
Name : LAMP-LICENSE
Color : LT. GRAY
# of pins : 2




Pin Circuit Description
1 Z960 18BK/LB GROUND
2 L217 20WT/VT PARK LAMP CONTROL OUTPUT

Component Location - 64
