Lamp-Headlamp-Left

Component ID: 365
Component : LAMP-HEADLAMP-LEFT

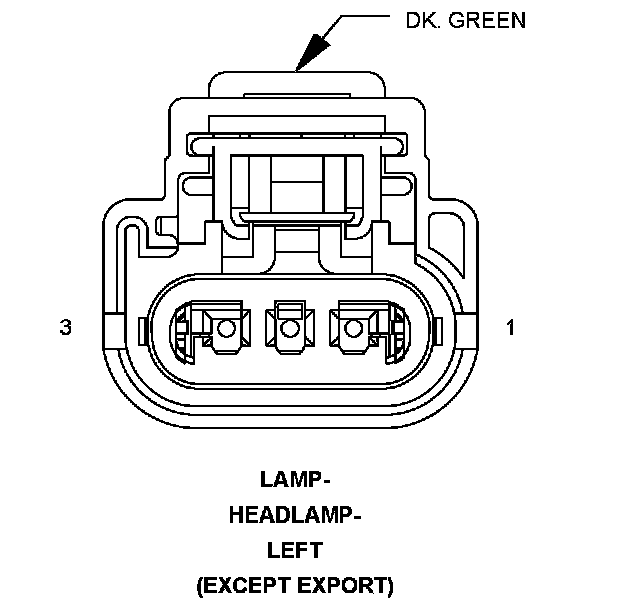

Connector:
Name : LAMP-HEADLAMP-LEFT
Color : DK. GREEN
# of pins : 3
Qualifier : (EXCEPT EXPORT)




Pin Circuit Description
1 L43 20WT/DB LEFT LOW BEAM OUTPUT
2 Z904 20BK/LG GROUND
3 L33 20WT/PK LEFT HIGH BEAM OUTPUT

Component Location - 10

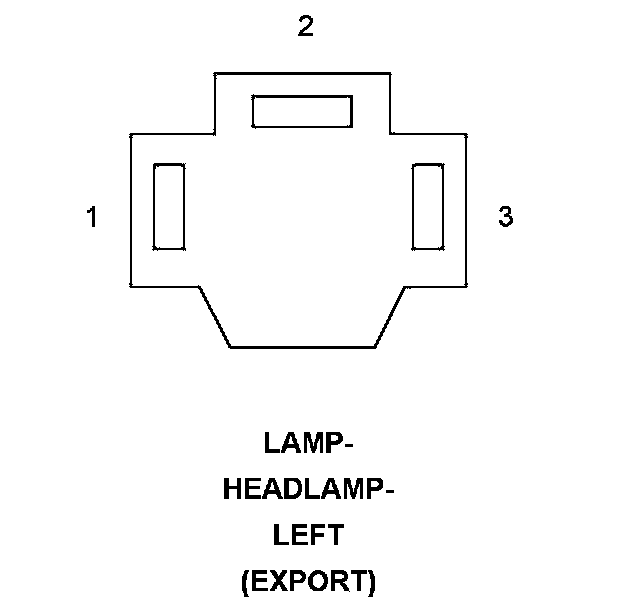

Connector:
Name : LAMP-HEADLAMP-LEFT
Color :
# of pins : 3
Qualifier : (EXPORT)




Pin Circuit Description
1 L33 20WT/PK LEFT HIGH BEAM OUTPUT
2 L43 20WT/DB LEFT LOW BEAM OUTPUT
3 Z904 20BK/LG GROUND

Component Location - 10
