Lamp-Fog-Right Front

Component ID: 300

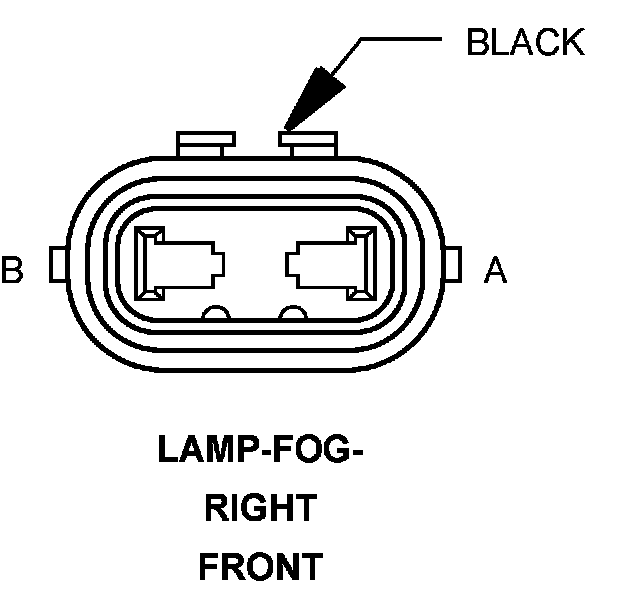

Component : LAMP-FOG-RIGHT FRONT

Connector:
Name : LAMP-FOG-RIGHT FRONT
Color : BLACK
# of pins : 2




A L90 20WT/OR FRONT FOG LAMP CONTROL OUTPUT
B Z904 20BK/LG GROUND
B Z908 20BK/PK GROUND

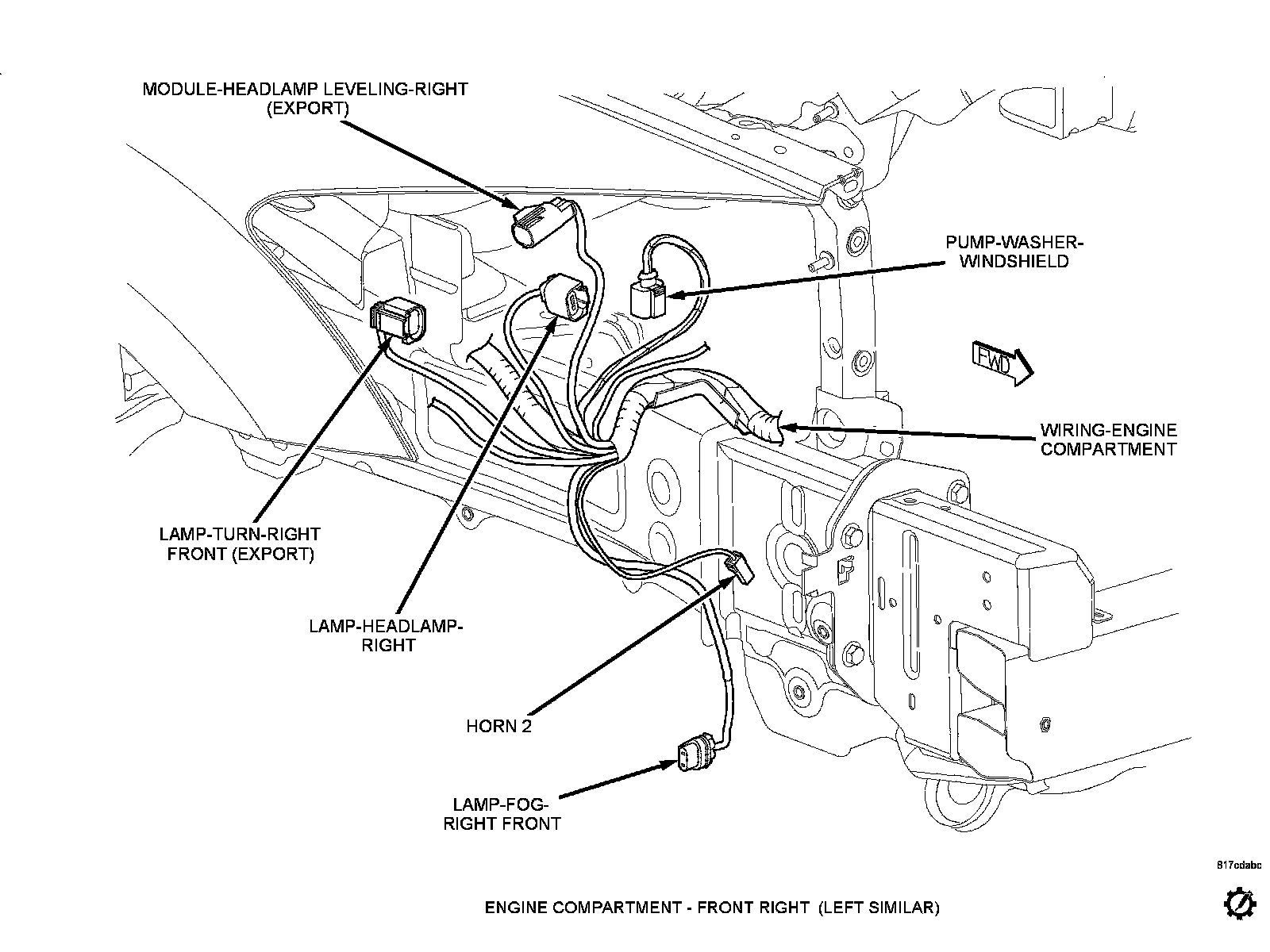

Component Location - 2
