Dome Lamp: Diagrams

Component ID: 272
Component : LAMP-DOME

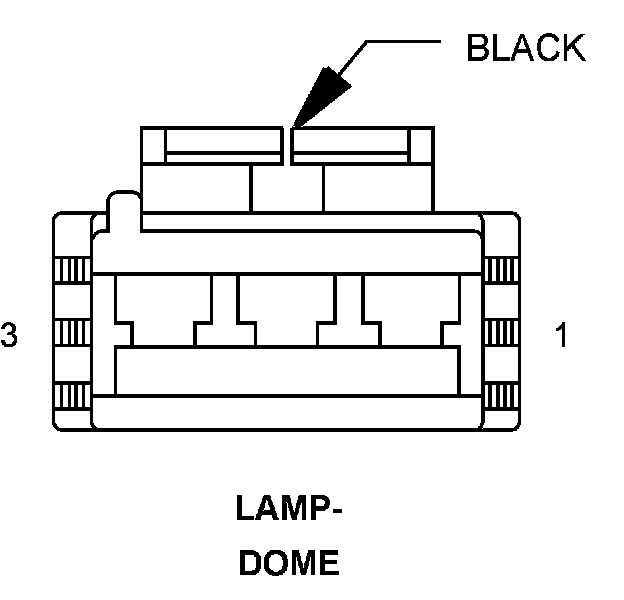

Connector:
Name : LAMP-DOME
Color : BLACK
# of pins : 3




Pin Circuit Description
1 - -
2 M24 20YL/WT COURTESY LAMPS DRIVER
3 Z936 20BK/LB GROUND

Component Location - 39






Connector:
Name : LAMP-DOME
Color :
# of pins : 3
Qualifier : (RECHARGEABLE)




Pin Circuit Description
1 F985 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2 M24 20YL/WT COURTESY LAMPS DRIVER
3 Z936 20BK/LB GROUND

Component Location - 39
