Connector Views

Component ID: 275

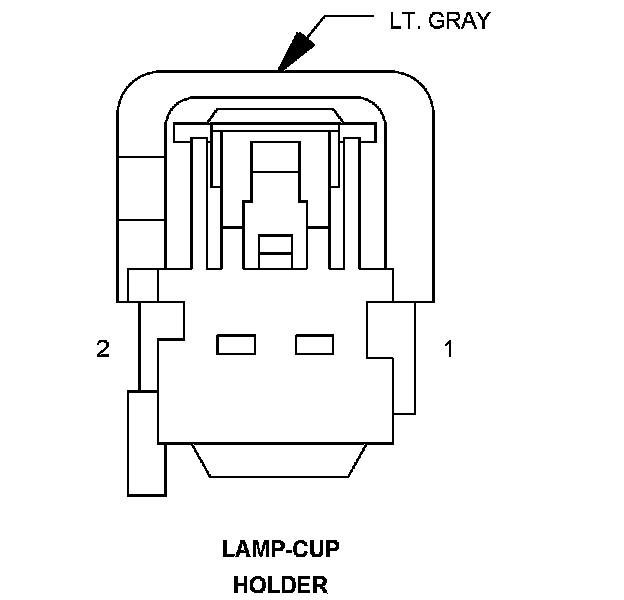

Component : LAMP-CUP HOLDER

Connector:
Name : LAMP-CUP HOLDER
Color : LT. GRAY
# of pins : 2




Pin Circuit Description
1 E12 20OR/GY PANEL LAMPS DRIVER
2 Z937 20BK GROUND
2 Z937 20BK/YL GROUND

Component Location - 36
