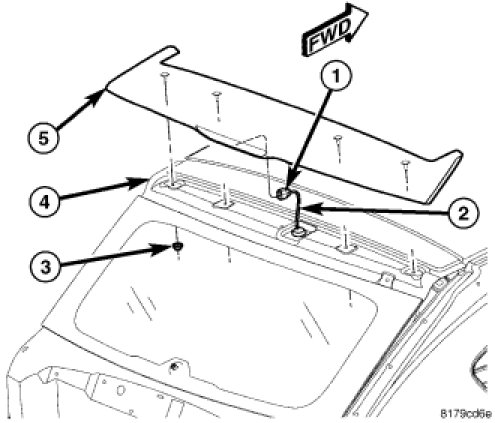

Center High Mounted Stop Lamp - Removal







REMOVAL





1. Disconnect and isolate the battery negative cable.
2. Remove the rear spoiler Liftgate Spoiler - Removal
3. With spoiler on bench, remove the two screws to the CHMSL.
4. Remove CHMSL from spoiler.
