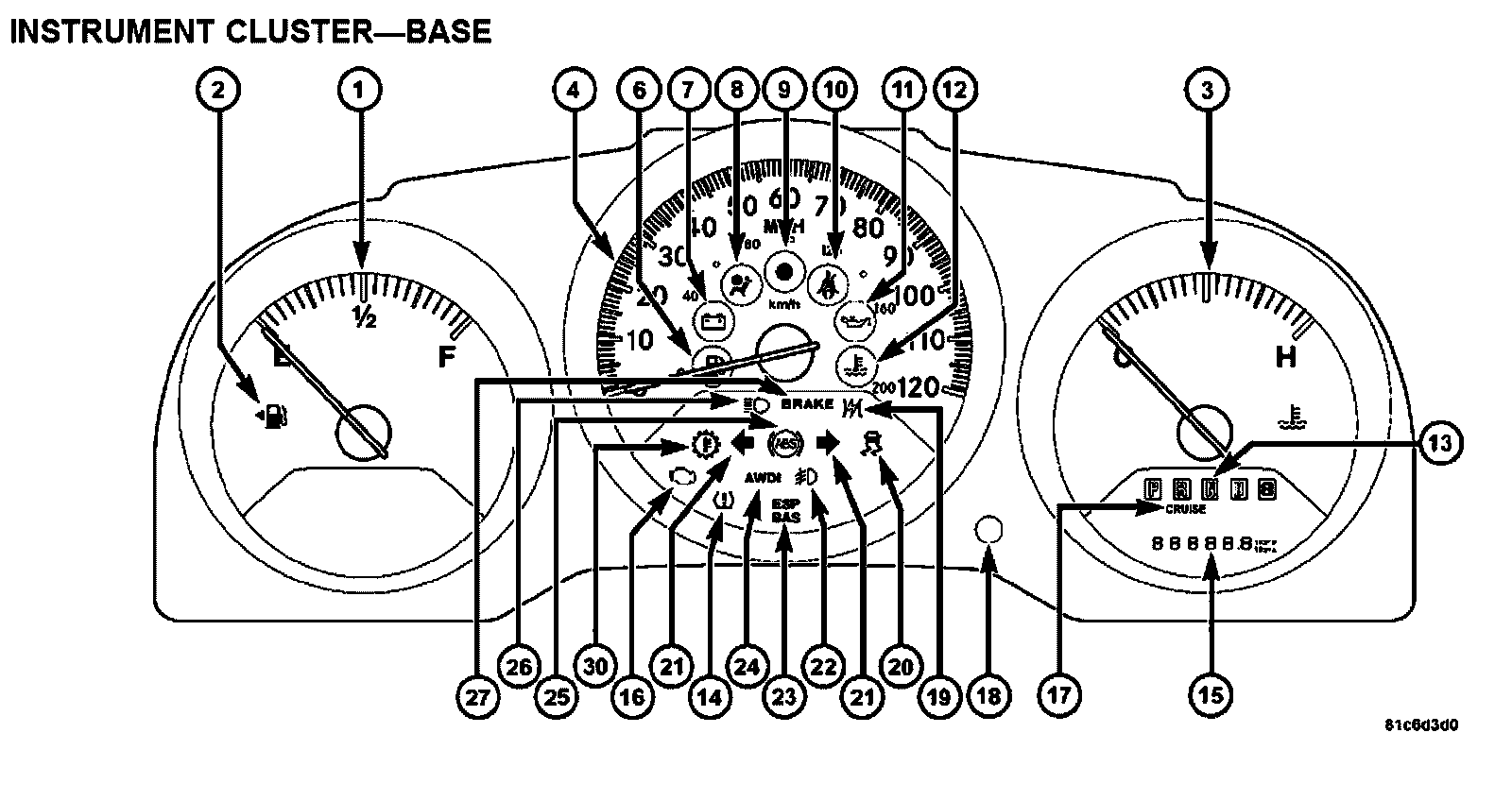

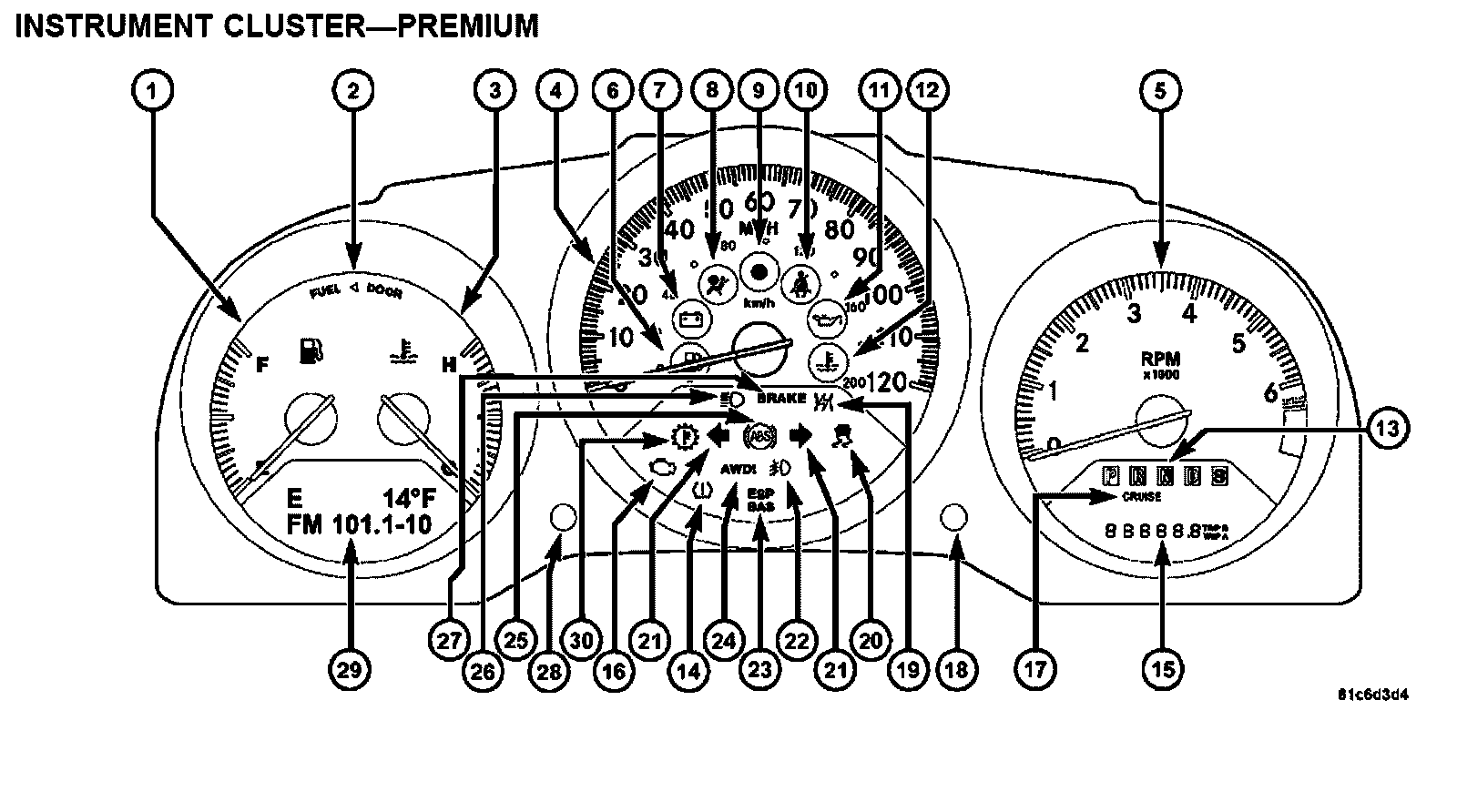

Indicator Lamp Identification

1. Fuel Gauge
2. Fuel Door indicator
3. Temperature Gauge
4. Speedometer
5. Tachometer
6. Low Fuel light
7. Charging System Light
8. Airbag Light
9. Theft Alarm Light - If Equipped
10. Seatbelt Reminder Light
11. Oil Pressure Light
12. Enginr Temperature Warning Light
13. Transmission Range Indicator
14. Tire Pressure Monitor light - If Equipped
15. Odometer/Trip Odometer
Change Oil Message
16. Malfunction Indicator Light
17. Cruise Indicator - If Equipped
18. Odometer/Trip Odometer Reset Knob
19. Electronic Throttle Control Indicator Light
20. Electronic Stability Program (ESP) Indicator Light/Traction Control System (TCS) Indicator Light - If Equipped
21. Turn Signal Indicators
22. Front Fog Light Indicator - If Equipped
23. Electronic Stability Program (ESP) Indicator Light
24. All-Wheel-Drive Failure Indicator Light
25. Anti-Lock Warning Light (ABS)
26. High Beam Indicator
27. Brake System Warning Light
28. Electronic Vehicle Information Center (EVIC) Button - If Equipped
29. Electronic Vehicle Information Center (EVIC) Display - If Equipped
30. Transmission Over Temp Light - If Equipped
