Compressor Clutch: Diagrams

Component ID: 249
Component : SOLENOID-A/C COMPRESSOR

Connector:

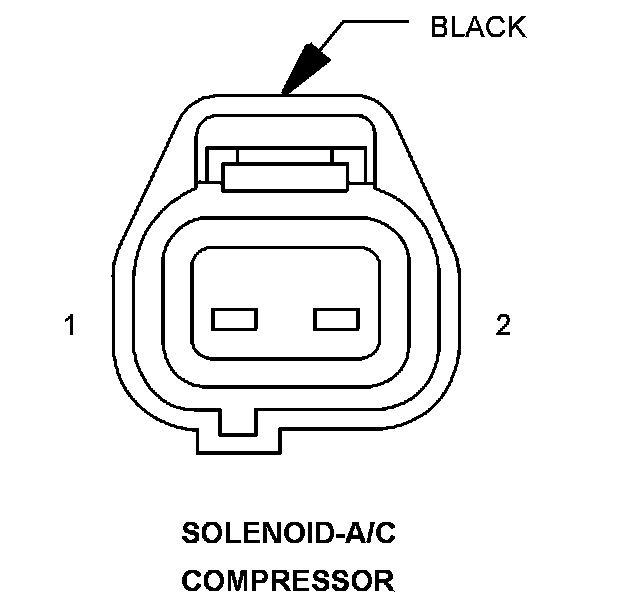

Name : SOLENOID-A/C COMPRESSOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 F343 18DB/LG FUSED MAIN RELAY OUTPUT
Pin Circuit Description
1 F343 20DB/LG FUSED MAIN RELAY OUTPUT
Pin Circuit Description
1 C27 20LB/WT A/C COMPRESSOR CONTROL
2 C27 20LB/WT A/C COMPRESSOR CONTROL
2 Z909 20BK/WT GROUND

Component Location - 14




Component Location - 19




Component Location - 15
