Connector Views

Component ID: 241
Component : MOTOR-BLOWER

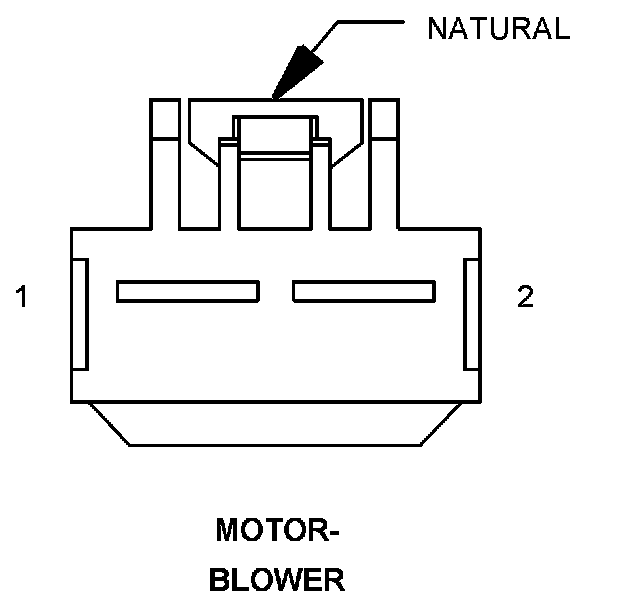

Connector:
Name : MOTOR-BLOWER
Color : NATURAL
# of pins : 2




Pin Circuit Description
1 C70 12DB/YL BLOWER MOTOR HIGH SPEED
2 C7 12DB/PK BLOWER MOTOR CONTROL

Component Location - 26




Component Location - 28




Component Location - 31
