Right Engine Mount

INSTALLATION

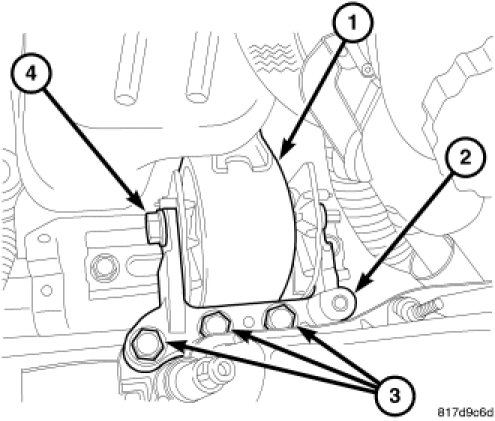

1. Position right engine mount (1).
2. Install engine mount retaining bolts and tighten to 75 Nm (55 ft. lbs.).
3. Install engine mount adapter (2) and tighten bolts (3) to 68 Nm (50 ft. lbs.).
4. Install engine mount through bolt (4) and tighten to 88 Nm (65 ft. lbs.).




5. Remove jack.

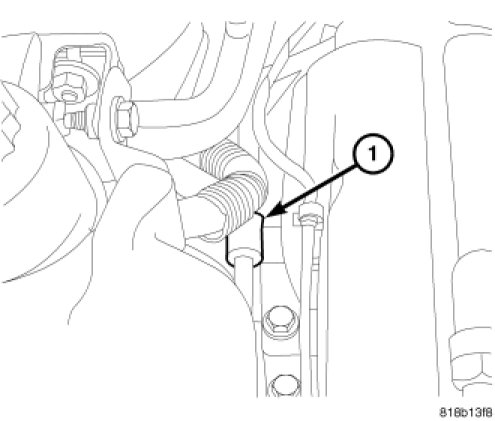

6. Install power steering line support bracket (1) at engine mount.

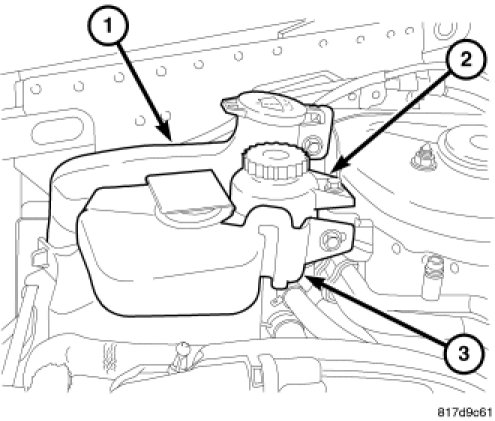

7. Install windshield washer bottle (1).
8. Install power steering reservoir (2).
9. Install coolant reservoir (3).
10. Install engine cover.
