Connector Views

Component ID: 172
Component : FAN MODULE-RADIATOR COOLING

Connector:

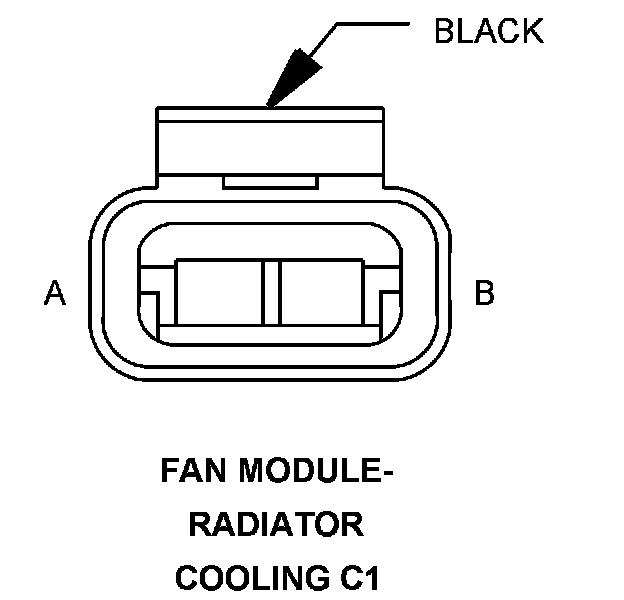

Name : FAN MODULE-RADIATOR COOLING C1
Color : BLACK
# of pins : 2




A N210 12DB/DG SERIES/PARALLEL RAD FAN RELAY FEED
B N23 12DB/GY LOW/HIGH RAD FAN RELAY OUTPUT

Component Location - 7






Connector:
Name : FAN MODULE-RADIATOR COOLING C2
Color : BLACK
# of pins : 2




A Z904 12BK/LG GROUND
B N24 12DG/DB RAD FAN RELAY OUTPUT

Component Location - 7
