Windshield Washer Pump

Component ID: 317

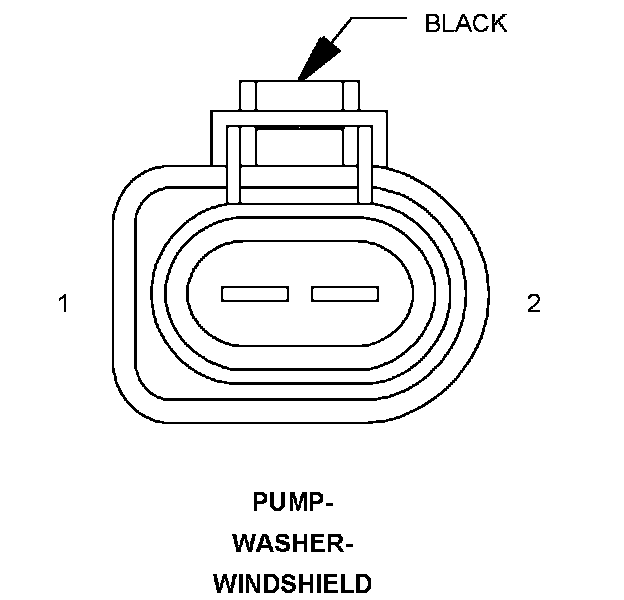

Component : PUMP-WASHER-WINDSHIELD

Connector:
Name : PUMP-WASHER-WINDSHIELD
Color : BLACK
# of pins : 2




Pin Circuit Description
1 W20 20BR/YL REAR WASHER PUMP MOTOR CONTROL
2 W10 20BR/TN FRONT WASHER PUMP MOTOR CONTROL

Component Location - 2




Component Location - 4
